Description
Product details:

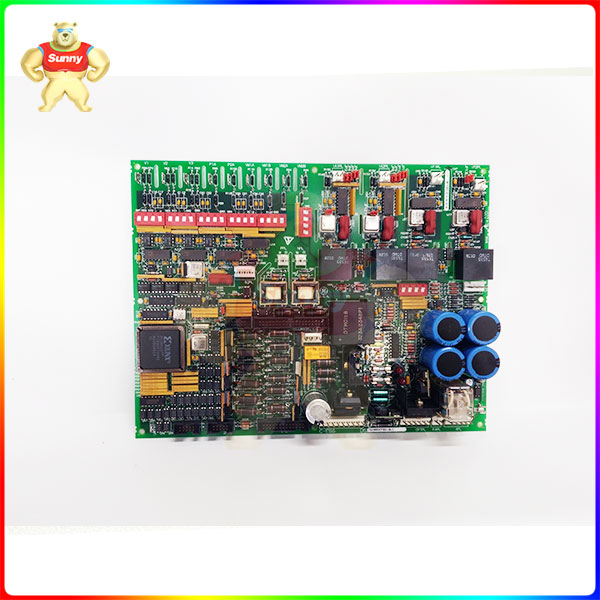

The DS200DCFBG1BLC contains a number of complex circuit systems designed to power most of the drivers. The card includes AC and DC monitoring circuit, control level power supply circuit, motor magnetic field power supply circuit and driving circuit. The user can configure twelve jumpers and seven DIP switches to meet any external requirements. The status of the motherboard is communicated to the user through onboard indicators. The card has two built-in leds and a neon indicator to provide users with important diagnostic and status information. The board’s three fuses are protected to ensure that interruptions or surges do not interrupt the current. Be sure to integrate five test points into the circuit board using periodic monitoring voltage levels.
The DS200DCFBG1BLC is a power board designed by General Electric for the Mark V Series optional and replacement boards. Members of the series are cross-compatible with many GE branded exciters and drives. Drives from DC2000, AC2000, CB2000, ME2000, and FC2000 all accept this power strip. The card supplies system control power to the driver installed on the card and power to the cabinet fan. The sourced AC input to this board can be rated from 38 to 115 volts AC. The frequency range accompanying this vacuum can range from 0 to 500 KHZ depending on the strength of the input voltage.
Installation parameters provided by DS200DCFBG1BLC and converter must be followed. These guidelines will ensure that the motherboard and the systems it is installed on perform as expected. Refer to the series manuals and equipment data sheets for wiring and installation instructions. Technical support for all motherboards in the Mark V series was initially provided by manufacturer General Electric.
