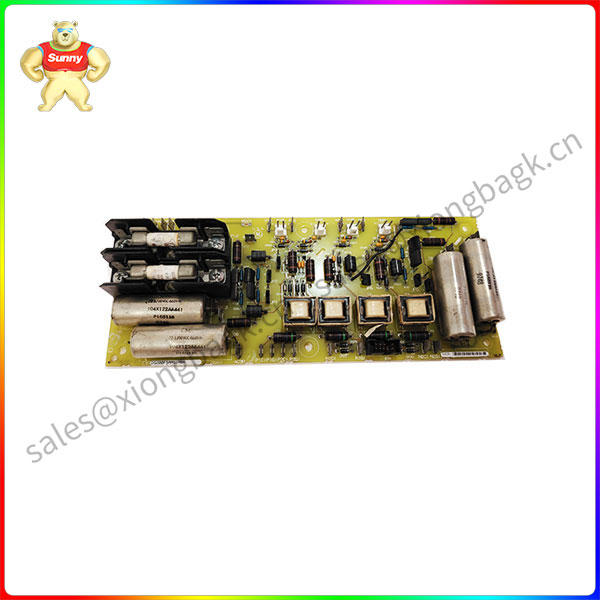

DS200FSAAG1ABA Field Supply Amplifier Board
Product Description
The DS200FSAAG1ABA is a Field Supply Amplifier Board in the General Electric (GE) Mark V Series control system. This module is designed for Mark V Series gas turbine control systems to amplify and process signals from field inputs, ensuring the accuracy of signal transmission and the reliability of the system.
Main functions and features:
Provides a stable field supply voltage to provide energy for generator excitation.
Signal amplification enhances the stability and accuracy of the system signal.
Protection functions, including overcurrent and overvoltage protection, ensure the safety of the excitation system.
Modular design for easy installation and maintenance.
Includes five jumpers, a 10-pin connector, and two fuses, as well as multiple test points.
DS200FSAAG1ABA
Product parameter
Technical specifications:
Input voltage range: 20.4 VDC to 30 VDC.
Operating temperature range: -40°C to 70°C.
Dimensions: Approximately 16.1 cm x 14.2 cm x 4.8 cm.
Fuse specification: 30A, 60V fast acting type.
Application field
Application scenario:
Mainly used in power plant generator excitation control system.
It can also be used in other industrial applications that require precise control of excitation.
Installation and use recommendations:
Before installation, all installation parameters provided by the manufacturer should be checked to prevent accidental damage to the equipment.
It is recommended that only qualified personnel handle and install DS200FSAAG1ABA terminal boards to ensure proper use.
When installing or replacing the circuit board, take ESD protection measures to avoid damage caused by static electricity.
Manufacturer information:
General Electric (GE) is a multinational corporation founded in 1892 and headquartered in the United States. It has operations in a variety of industries, including aviation, healthcare, renewable energy and power.
Mainly used in power plant generator excitation control system.
It can also be used in other industrial applications that require precise control of excitation.
Installation and use recommendations:
Before installation, all installation parameters provided by the manufacturer should be checked to prevent accidental damage to the equipment.
It is recommended that only qualified personnel handle and install DS200FSAAG1ABA terminal boards to ensure proper use.
When installing or replacing the circuit board, take ESD protection measures to avoid damage caused by static electricity.
Manufacturer information:
General Electric (GE) is a multinational corporation founded in 1892 and headquartered in the United States. It has operations in a variety of industries, including aviation, healthcare, renewable energy and power.
