VMIVME-1128 GE 128-bit High-Voltage Digital Input Board

Description

VMIVME-1128 GE 128-bit High-Voltage Digital Input Board

Can be transported to all parts of the world. (Exclude areas that cannot be transported under special circumstances! )

If necessary, please contact customer service.

[service contact information]

Tel: 18059884797 (WeChat with the same number)
QQ：3095989363
Email: sales@xiongbagk.cn

Address: Unit 2009, Chuangxiang Center, No.1733, Lvling Road, Siming District, Xiamen

① 24-hour email reply (12 hours);

③ For shipment to countries outside Asia, please contact the seller.

• 128 bits of high-voltage digital inputs
• Each group of eight inputs is jumper selectable to monitor voltage source or
current sinking signals
• Open circuit provides logic zero or (jumper-selectable) logic one
• On-board Built-in-Test logic for fault detection and isolation
• Front panel with fail LED
• User-selectable input voltage thresholds (0.61 to 34 V) with inputs of 0 to
66 V (see Table 1)
• Complies with the VMEbus Specification Rev. C.1
• A24:A16:D32/D16/D08 (EO): slave: 39/3D:29/2D
• Double Eurocard form factor (6U)
• High reliability DIN-type I/O connectors
• Compatible with VMIC’s Intelligent I/O Controllers (VMIVME-90xx series) and
Universal I/O Controllers (VMIVME-9300 series)
Applications:
• Automatic Test Equipment
• Control System Inputs
• Data Acquisition Systems
• Digital Input Status Monitoring
• General Purpose Digital Inputs
• Low Maintenance Applications (BIT)
• Status Sensor Monitoring
• Supervisory Control Systems

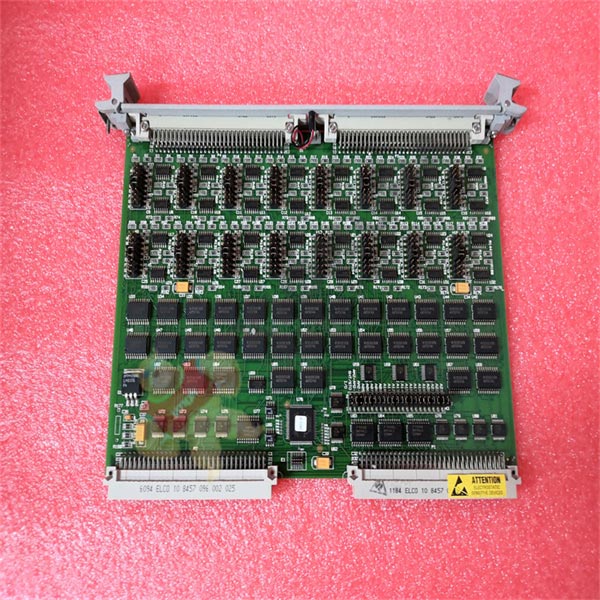

VMIVME-1128

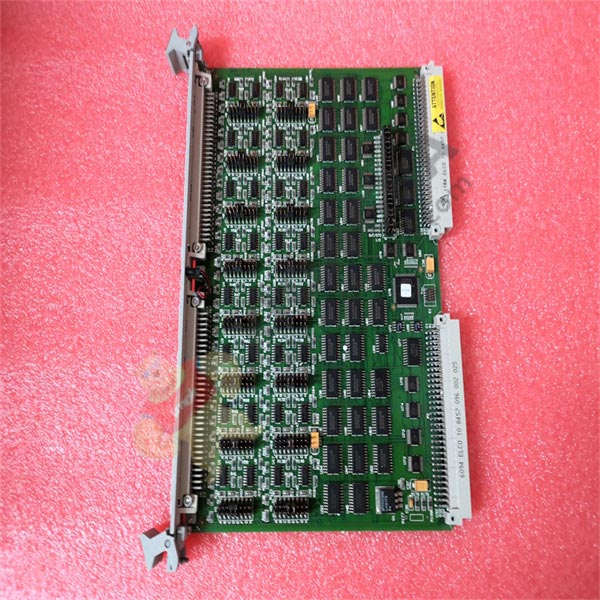

VMIVME-1128

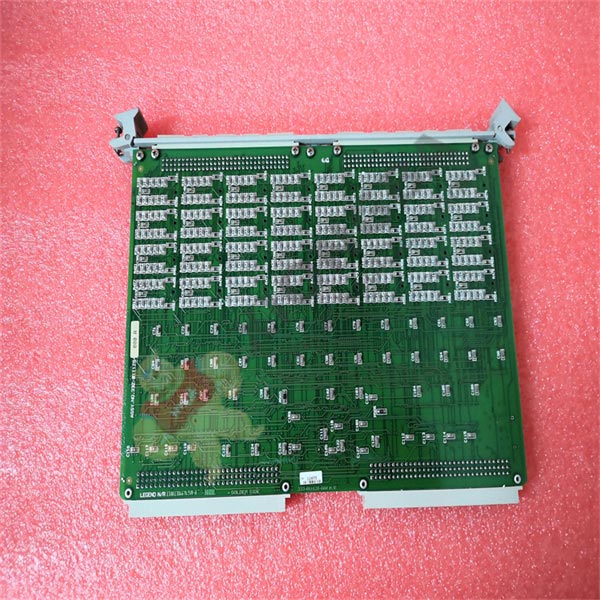

VMIVME-1128

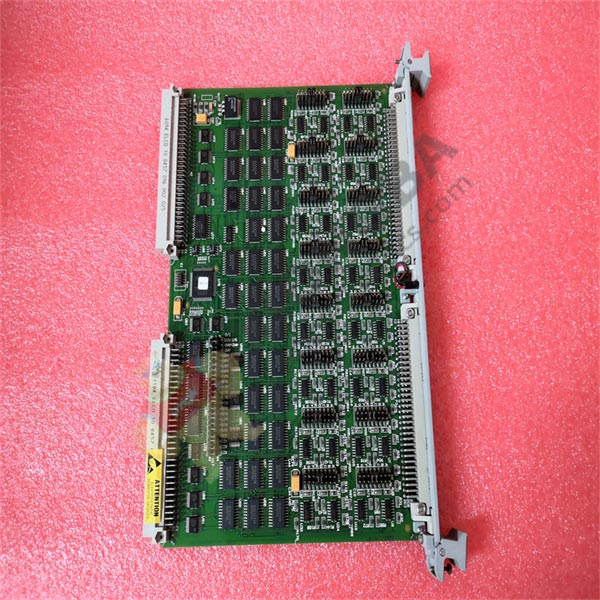

VMIVME-1128

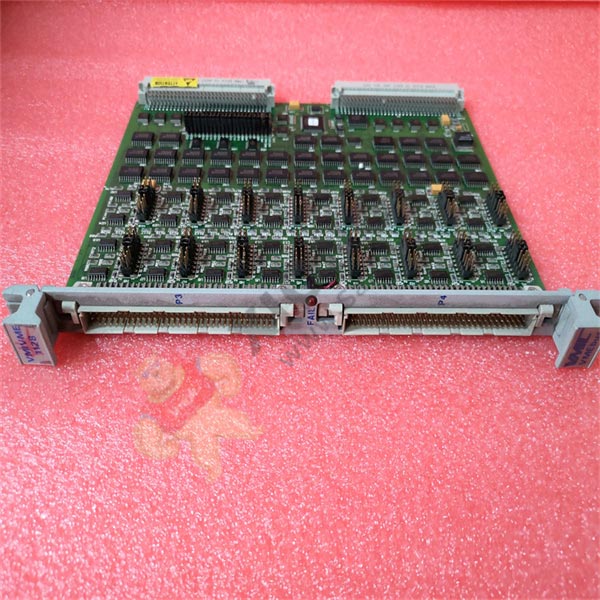

VMIVME-1128

Input Connector Type: Two 96-pin female connectors are used with this board. For mass terminations (IDC), an ERNI IDC DIN connector and 0.033-inch 30 AWG ribbon cable are recommended. The ERNI order

numbers are: 96-pin connector 913 031 96-conductor 0.033-inch cable 913 049 For discrete wire use, Harting connectors are recommended. This connector consists of a contact housing with female crimp-on contacts.

Harting order numbers are: 96-pin connector 09 03 096 3214 Female crimp-on contacts 09 02 000 8484 Crimp tool (for stripped wire) 09 99 000 0075 Either connector needs a shell housing with holding levers. We

recommend the Harting housing. Its order number is 09 03 096 0501. This shell is used with the discrete wire cable, latching the discrete wire cable to the board connector and providing a strain relief. I/O Organization:

Sixteen input ports, eight bits wide for a total of 128 inputs, addressable to any address within the short supervisory and/or short nonprivileged or the standard supervisory data and/or standard nonprivileged data I/O

map.

Addressing Scheme: Thirty-two bytes individuallyaddressable on 8-, 16-, or 32-bit boundaries. A Board IDRegister is located at the base address of the board. A Controland Status Register (CSR) is stacked above the ID

Register.The sixteen input bytes are placed above the CSR. Twenty jumpers establish the base address of the board. Another jumper is used for standard or short I/O accesses. Thefollowing address map shows the

relative locations of all the registers used by the board.

Application industry:

Power plants, steel mills, automobiles, petrochemicals, tobacco, metallurgy
