Description

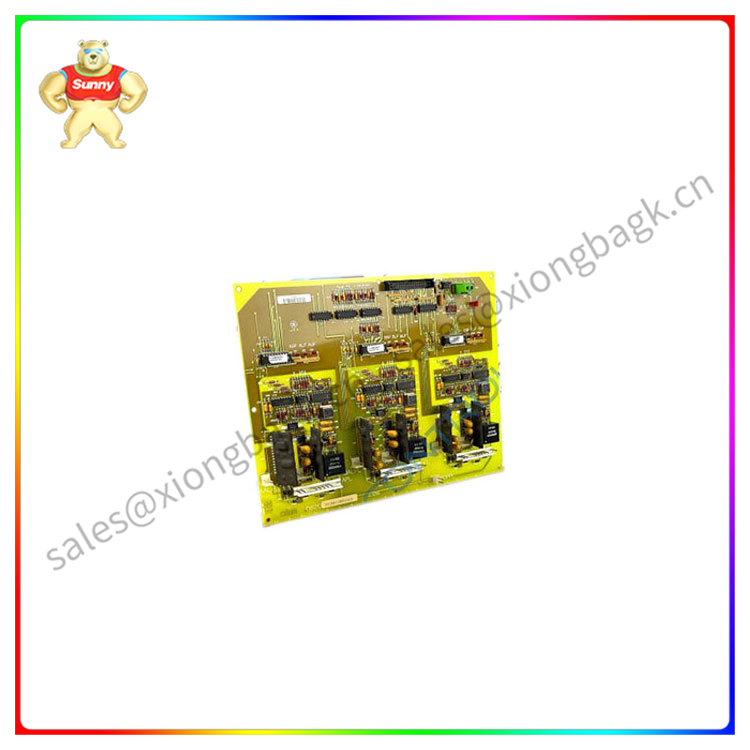

The GE Insulated Gate Bipolar Transistor (IGBT) Board DS200IIBDG1A contains nine indicator LEDs that provide a status of the processing of the board. The LEDs are visible from the interior of the circuit board cabinet and are red in color when lit.
The GE Insulated Gate Bipolar Transistor (IGBT) Board DS200IIBDG1A has several connectors and when you install the replacement board you must make sure that you connect the cables in exactly the same connectors. To make sure you reconnect them to the same connectors, inspect the defective board and take notes that indicate the connector identifiers of the connector to which you have attached cables. Then make labels and attach them to the cables that show where to attach the ables on the new board.
Also, the board contains one or more jumpers that are used to configure the board to process information in a specific way for your drive. Other jumpers are set at the factory are used at the factory for testing purposes only. The information that comes with the board identifies the jumpers and describes the jumper settings and how they change the board behavior.
DS200IIBDG1ADS200IIBDG1A
When power is applied to the board and the drive is in operation the LEDs indicate the operation of the board. Since the LEDs are only visible when power is applied to the board great care must be taken when you open the cabinet. Do not touch any components in the drive while viewing the LEDs and make sure you do not drop any metal, dirt, or other debris in the drive.
