DS200PCCAG1ABB GE

Description

DS200PCCAG1ABB GE DC Power Connect Board

Can be transported to all parts of the world. (Exclude areas that cannot be transported under special circumstances! )

If necessary, please contact customer service.

[service contact information]

Tel: 18059884797 (WeChat with the same number)

QQ：3095989363

Email: sales@xiongbagk.cn

Address: Unit 2009, Chuangxiang Center, No.1733, Lvling Road, Siming District, Xiamen

① 24-hour email reply (12 hours);

③ For shipment to countries outside Asia, please contact the seller.

Specializing in the world-renowned brand DCS system, robot system, large-scale servo control system and module.

Main brand: Allen Bradley、BentlyNevada、ABB、Emerson Ovation、Honeywell DCS、Rockwell ICS TRICONEX、FOXBORO、Schneider PLC、GE Fanuc、Motorola、HIMA、Prosoft、Woodward、MOOG、

RexrothAnd other imported industrial parts.

DS200PCCAG1ABB

DS200PCCAG1ABB

DS200PCCAG1ABB

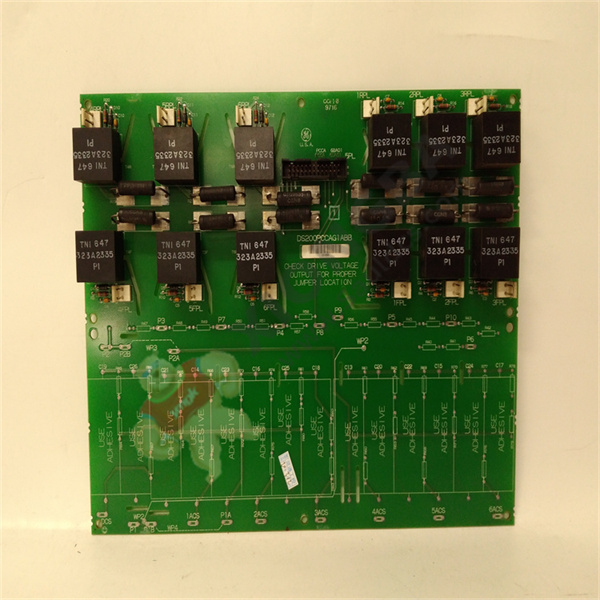

The GE DC Power Connect Board DS200PCCAG1ABB serves as an interface between the drive and the SCR power bridge.  Static electricity can build up in the DS200PCCAG1ABB board and damage the board if guidelines are not adhered to that mitigate the static build up. For example, always wear a grounding strap when you handle, touch, or move the board.  And before you install the board, keep it in the static-protective bag. Touch the bag to an unpainted metal surface and keep it against the surface for a few seconds.

If you happen to be replacing the board in cold dry weather take extra caution against static. You’ll find that static builds up easily in those weather conditions.  And, always place the board on the package it came in. It protects against static and will prevent damage to the board.  Have the package out and flattened if you need to put it down during installation.

Ribbon cables are flat wide cables that carry multiple signals from one device to another and are often used to carry signals on a board. However they tend to be delicate and require special handling instructions to prevent damage. The wires in ribbon cables are often thin and not designed for rough handling. When you disconnect a ribbon cable do not pull the connector out by pulling the ribbon cable. Instead, place you hand on the connector attached to the ribbon cable. Then disconnect by pulling the connector out of the connector on the board.

Frequently Asked Questions about DS200PCCAG1ABB

How many jumpers does DS200PCCAG1ABB have?

DS200PCCAG1ABB has 4 wire jumpers. The jumpers on DS200PCCAG1ABB are JP1, JP2, WP3, and WP4. These jumpers for DS200PCCAG1ABB select system voltage and determine snubber capacitor connections.

How many AC volts does DS200PCCAG1ABB have?

DS200PCCAG1ABB has ≤600 V rms AC volts. We know this because DS200PCCAG1ABB is a G1 board group PCCA.

Is DS200PCCAG1ABB regenerative?

Yes, DS200PCCAG1ABB is regenerative because DS200PCCAG1ABB is a G1 PCCA board. G1, G7, and G9 PCCA boards, including DS200PCCAG1ABB, are all regenerative while G2, G8, and G10 are non-regenerative.

Where can I find the manual for DS200PCCAG1ABB?

We can supply you with the manual for DS200PCCAG1ABB. The manual that goes with DS200PCCAG1ABB is Manual GEI-100151, the GE Industrial Control Systems PCCA Power Connect Card Manual. This manual is an original manual by General Electric and the manual provides a functional description of DS200PCCAG1ABB, application data for DS200PCCAG1ABB, and the manual has renewal/warranty replacement information on DS200PCCAG1ABB.

Application industry:

Power plants, steel mills, automobiles, petrochemicals, tobacco, metallurgyNote: Please follow the instruction manual of this product to install and debug, so as not to damage the product
