DS200TBQCG1AAA GE

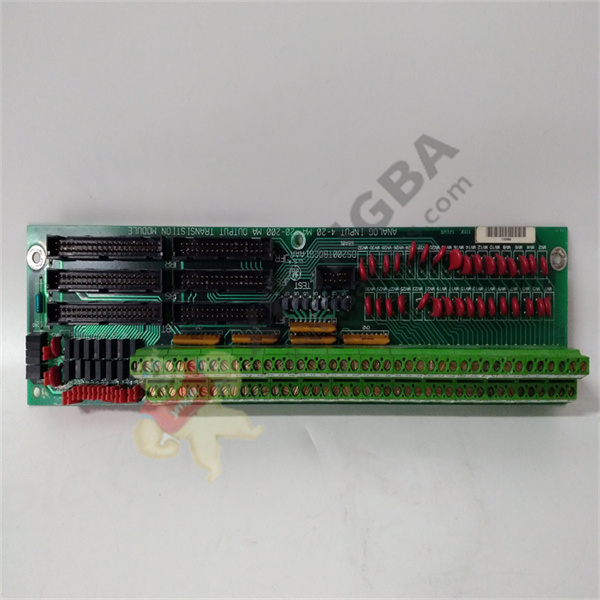

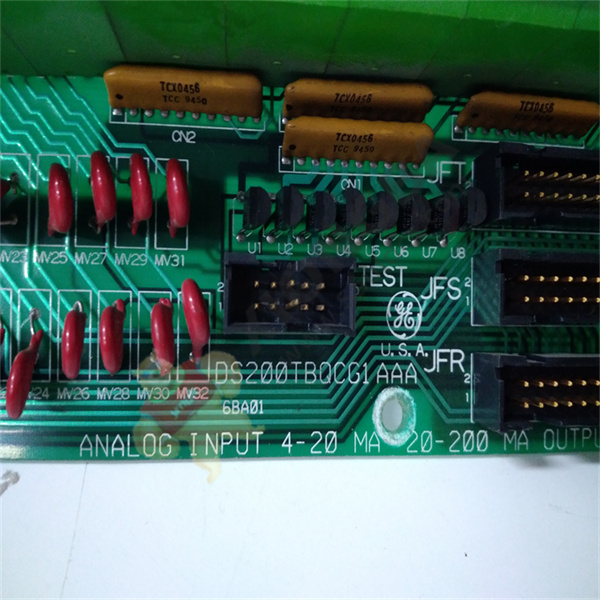

The GE RST Analog Termination Board DS200TBQCG1AAA features 2 terminal blocks. Each block contains 83 terminals for signal wires. The GE RST Analog Termination Board DS200TBQCG1AAA also contains 15 jumpers, 3 40-pin connectors, and 3 34-pin connectors. The jumpers enable the servicer to modify the behavior of the board in order to  meet the exact requirements of the drive operation.  When you first setup the board and have received the board from the factory, refer to the installation instructions which will include a description of the jumpers and how the position of the jumpers modifies the operation of the board. The jumpers are in the default position when you receive the board. The default is used for most situations and no additional steps are required if the default value is all you require.

The 3-pin jumper is easy to move from the default position to the alternate position. Use your forefinger and thumb to remove the jumper from the default position. Then align the jumper over the alternate pins and press the jumper into place. For example, if pins 1 and 2 are the default position in a 3-pin jumper, insert the jumper over pins 2 and three to use the alternate position.

Some jumpers are for use by the factory only and cannot be changed. Typically, the alternate position is for use at the factory for quality control testing purposes only. When you replace the board, first move the jumpers on the replacement board to match the positions on the defective one.
