GE IC697MDL652 ype of positive/negative logic

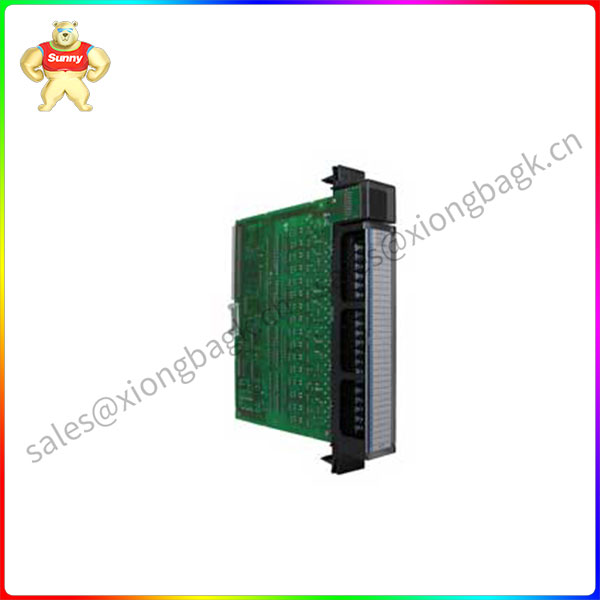

The IC697MDL652 module is a type of positive/negative logic input module that is made by GE Fanuc.

This module is available through Series 90-70 and it requires a current rating of 0.3 Amps. The rated voltage of the module is 12 Volts DC and its input current is 4.7 milliAmps.

The IC697MDL652 module comes with faceplate LED indicators for status updates and it features a selectable input filter option.

The users can choose either 1 millisecond or 10 milliseconds-rated input filters.

Other features include use with proximity switches, positive/negative logic compatibility, interrupt single input, different configuration options,

high performance with industrial components such as programmable logic controllers, limit and selector switches, and pushbuttons.

IC697MDL652

The IC697MDL652 module offers 32 input points arranged in 4 groups of 8.

All input points are completely controlled by the module and the module is perfectly compatible with many PLC devices from the series.

The IC697MDL652 module has an input voltage range of -2.5 to 15 Volts DC and it is designed for systems connected to DC power sources.

The module has an isolation voltage of 1500 Volts for backplane inputs and 500 Volts for input groups.

The typical impedance for the input of the module is 1.12 kiloohms. In regard to the other input characteristics,

the IC697MDL652 module has an on-state voltage of 7.5 to 15 Volts and an off-state voltage of 0 to 2.5 Volts.

In addition to that, the on-state current of the unit is 6 to 16 milliAmps while its off-state current is 0 to 2.5 milliAmps.

The module is made according to VME (standard C.1) and it is a highly reliable component that operates as part of complex industrial systems.
