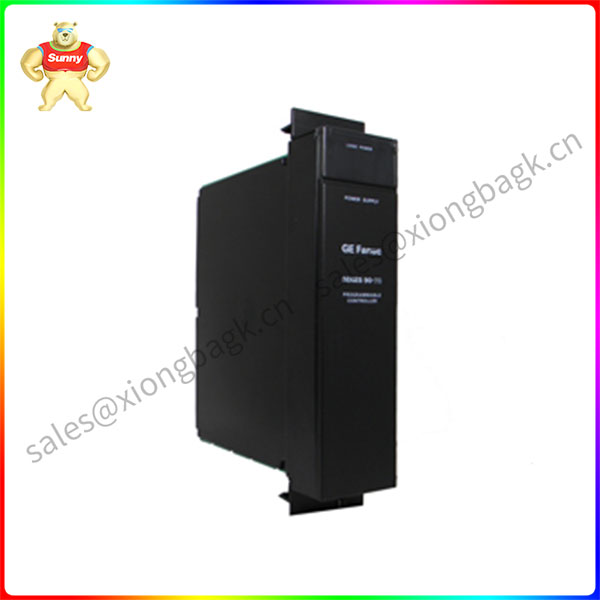

GE IC697PWR711 power supply module

The IC697PWR711 is a power supply module from the Ge Fanuc 90-30 Series Programmable Logic Controller (PLC) family.

This module has a selectable input voltage compatibility such as 120 VAC and 240 VAC, dictated by an external jumper setting.

For both the nominal vali input voltages, the applicable voltage range are 90 to132 VAC or 180 to 264 VAC, with frequency of 47 to 63 Hz.

The IC697PWR711 has output voltage supply of +5VDC, 12VDC and -12VDC and logic level sequencing signals towards the backplane.

This power supply is mounted on the leftmost location of the 90-30 rack, attached via the 48-pin backplane connector.

IC697PWR711

This power supply is capable of supplying power to a second rack provided that the total load of the additional rack will not exceed the total 100 Watt capacity of the IC697PWR711.

Specifically, the 2nd rack must be less than 5.2 amperes. Additionally, powering the 2nd rack requires use of 3-feet connecting cable.

The 2nd rack must be within the reach of this cable as it is not designed to operated more than 3 ft.
The has a slide in rack mount construction. The +5VDC delivers maximum output of 18 amperes, +12VDC a maximum output of 2 Amperes and maximum 1 Ampere from the -12VDC output.

This power supply has an internal electronic short-circuit and overcurrent protection. For branch circuit fusing, an external switch that is appropriately sized must be installed.

This power supply has an ON / OFF switch to put the power supply to active operation.
