Description
Product details:
IS220PVIBH1A Technical Specifications

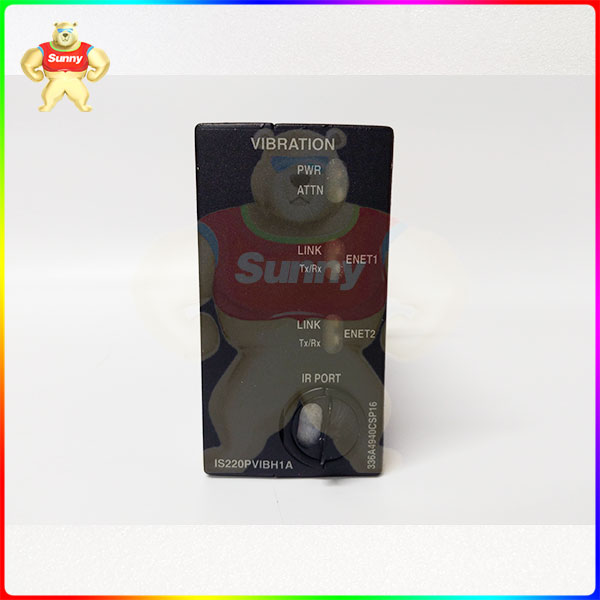

Ambient Temperature Range | -30 to 65 °C |
Board Compatibility | Vibration Terminal Board (TVBA) |
Channels | Thirteen for Proximity and Vibration |
Common Mode Voltage | Min. 5 VDC |
Dimensions | 3.25″ high x 1.65″ wide x 4.78″ deep |
Frame Rates | 3.125, 6.25, 12.5, 25, 50, and 100 Hz |
Functional Acronym/Abbreviation | PVIB |
LED Indicators | 4 |
Probe Power | -24 VDC, 12 mA load per transducer |
Status LEDs | Attn, Pwr, Link, TxRx |
Product Description
The IS220PVIBH1A model was designed as a Vibration Monitor Pack. The main function of the PVIB pack is to provide an electrical interfacing function between up to two I/O Ethernet networks and a vibration terminal board. The main components of this pack are the main processor board which is used with a majority of the MK VIe distributed I/O packs as well as a daughterboard and an acquisition board.
There are thirteen channels on this pack which are used for collecting and reading proximity and vibration information through several sensor types which are as follows:
Velomitor
Seismic
Proximitors
Accelerometers
IS220PVIBH1A Installation
Follow the procedure to install the pack
Secure the terminal board you want to use.
Connect the PVIB I/O pack to the terminal board connectors directly.
Use the threaded studs close to the Ethernet ports to mechanically secure the packs.
Depending on the system configuration, connect one or two Ethernet wires. The pack can be used with either port. When using dual connections, ENET1 should be connected to the network linked with the R controller.
Connect the pack to the power source by plugging in the connector on the side.
Configure the I/O pack as needed using the ToolboxST* application.
Check that the N28 power supply daughterboard on the TVBA is properly placed in the TVBA connector.

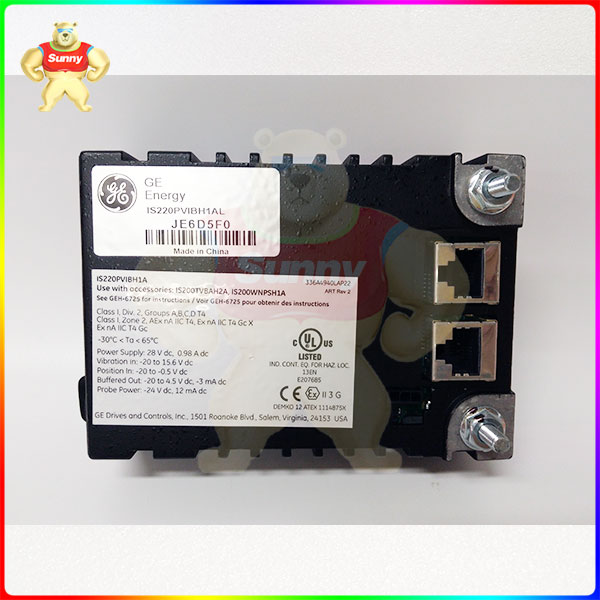

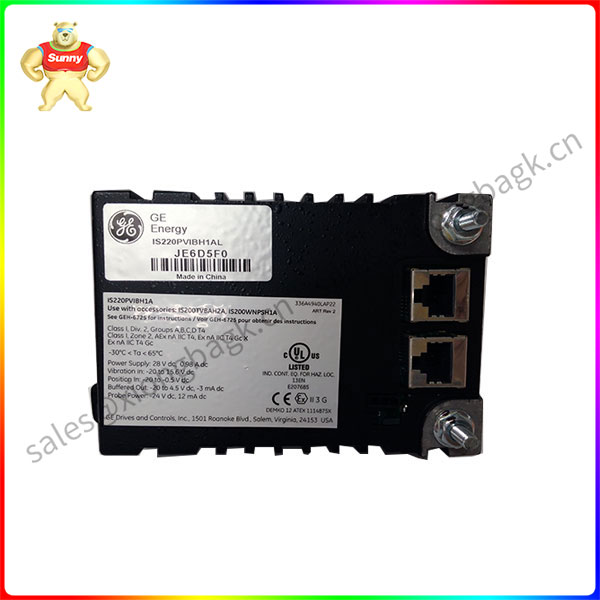

IS220PVIBH1A is a Vibration Monitor (PVIB) pack developed by GE under the Mark VIe control system. The Vibration Monitor (PVIB) pack connects one or two I/O Ethernet networks to the TVBA vibration terminal board electrically. The pack includes a processor board, an acquisition board, and a daughterboard, which are all common to all Mark VIe distributed I/O packs.
The pack reads vibration or proximity information from the following sensor types using channels 1 through 8: Proximitors, integrated output accelerometers (Channels 1-3 only), Velomitor, or seiseismic channels 9 through 12 only support proximitors, while channel 13 can input either a Keyphasor signal-type or a proximity-type signal.
Dual RJ45 Ethernet ports and 3-pin power input are used to power the pack. For frame rates slower than 100 Hz, the PVIB enables twin Ethernet networks. It supports frame rates of 3.125, 6.25, 12.5, 25, 50, and 100 Hz over an Ethernet network.

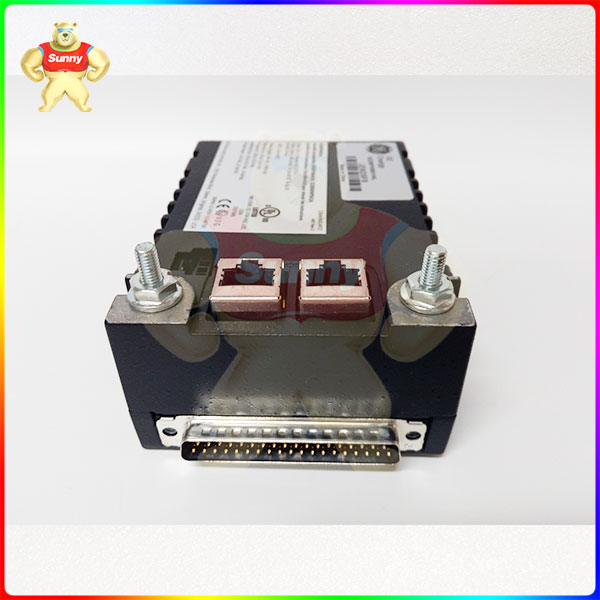

A DC-37 pin connector connects directly to the matching terminal board connector for output. Indicator LEDs are used to display visual diagnostics.
