IC660BBA104 6231BP10910 GE Analog I/O Block
[service contact information]
Tel: 18059884797 (WeChat with the same number)
QQ：3095989363
Email: sales@xiongbagk.cn
Address: Unit 2009, Chuangxiang Center, No.1733, Lvling Road, Siming District, Xiamen
① 24-hour email reply (12 hours);
③ For shipment to countries outside Asia, please contact the seller.
The IC660BBA104 is a Genius Analog I/O Block of GE Fanuc series 90-30 PLCs. It belongs to the Analog Mixed Modules group and can be powered with either 115 VAC or 125 VDC. It has four inputs and two outputs whose I/O range is between 4 mA to 20 mA and provides the system with different types of diagnostics. Circuits are isolated, and accuracy of input is as precise as 0.1%.
Power is provided to the block and all the circuits from a single input, so that external power is not needed to process signals. After the signal enters the block, circuits apply linear scaling to convert it to engineering units. With every scan, 8 bytes of data containing those engineering data are broadcasted. The output data broadcast in 4 bytes. The block provides an output that connects to a Bus Switching Module (IC660BSM21) and is compatible with Genius Bus Controllers, PCIM and QBIM modules. To configure the IC660BBA104 Genius Analog I/O Block, the user needs a Hand-held monitor version 3.7 or later. The programming software is Logicmaster 6 ver. 4.02 or later. CPUs that are compatible with the block are rev. 105 or later for Series Six PLCs and rev. 3.0 or later for series 5 PLCs.

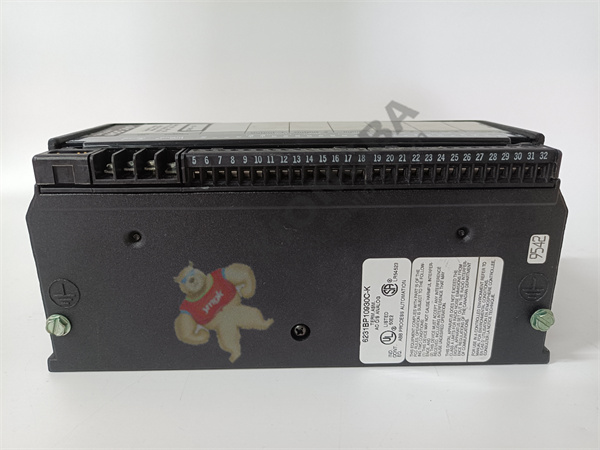

The block can be configured to detect input alarms, hold the last output state, or a default state and receive output feedback. The time to convert a signal to a value can be up to 400ms, and the block can work if there is CPU redundancy. Diagnostic checks involve detection of input open wire, input high and low alarms for each input individually, I/O over range and under range signal detection, and errors in output feedback. The IC660BBA104 Genius Analog I/O Block has 32 terminals. The power source connects to terminals 5 and 6. I/O cables connect to the self-powered inputs 17 to 32. Outputs connect to terminals 11-12 and 14-15. If they are both grounded, a 10-ohm resistor is needed to prevent circuit damage. The bus switching module connects to terminals 9-10.
IC660BBA104 6231BP10910
IC660BBA104 6231BP10910
IC660BBA104 6231BP10910
IC660BBA104 6231BP10910
