Description
IC670GBI102D GE Genius interface bus unit module
[service contact information]
Tel: 18059884797 (WeChat with the same number)
QQ：3095989363
Email: sales@xiongbagk.cn
Address: Unit 2009, Chuangxiang Center, No.1733, Lvling Road, Siming District, Xiamen
① 24-hour email reply (12 hours);
③ For shipment to countries outside Asia, please contact the seller.
Product Description:
IC670GBI001 is the communication module of GE Fanuc field control series. The module especially supports Genius bus protocol, allowing users to implement distributed I/O architecture. The module is coupled to the Genius bus interface unit terminal block and can be mounted on a DIN rail or panel. The terminal board module also carries screw terminals, where the main genius bus connection and optional redundant network connection can be established.
IC670GBI001 supports daisy chain topology on primary and secondary buses. The data transmission speed supported by the module is 153.6 kilobaud standard, 153.6 kilobaud expansion, 76.8 kilobaud or 38.4 kilobaud. The available memory is allocated for various data types, such as 256 byte discrete input (% I), status data and intelligent modules; 256 bytes are used for fault clearing of discrete output (% Q) and intelligent module; 256 bytes for analog input (% AI) and 256 bytes for analog output (% AQ). Both the main bus connection point and the secondary bus connection point are equipped with a termination resistor connection point, which is used to terminate the bus connection and maintain a stable connection on the network. This termination point is specially assigned to Serial 1 and Serial 2 terminals and is installed at the starting point (first node) and the end point (last node) of the bus. Resistance values include 75 ohm, 100 ohm, 120 ohm, or 150 ohm terminal resistors. The preformed bus cable can also be used for this bus interface module. Its catalog number is IC660BLM508, which uses a 75 ohm resistor, and IC660BLM506 uses a 150 ohm resistor.

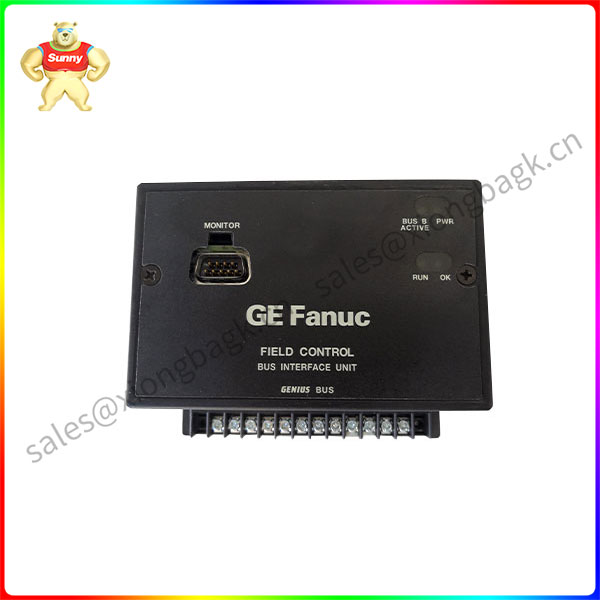

IC670GBI102 bus interface unit is a field control bus interface unit produced by GE Fanuc. The unit is part of the GE Field Control family and is compatible with IC670GB and IC670GBI modules. This programmable control module operates in the temperature range of 0 to 55 degrees Celsius (32 to 131 degrees Fahrenheit) and its storage temperature range is – 40 to 85 degrees Celsius (- 40 to 185 degrees Fahrenheit). The relative humidity range of IC670GBI102 bus interface module is 5 to 95% (non condensing). IC670GBI102 bus interface unit can withstand the typical solid vibration and impact level in industrial environment, and it is installed on the panel mounted DIN rail.
IC670GBI102 bus interface unit can use AC and DC power supply, and the working voltage range is 90 to 135 V AC and 105 to 150 V DC. The rated voltage of IC670GBI102 bus interface unit is 115 V AC and 125 V DC. The maximum power consumption is 48 VA at 115 VAC and 24 W at 125 VAC. Power consumption is specified for full load operation. The surge current of the device has a peak value of 20 amperes and a maximum duration of 3 milliseconds. When the power supply output voltage is 6.5 V DC, the maximum holding time of the device is 20 ms. The input frequency of the device is 47 to 63 Hz. The terminal board of bus interface unit is 16mA, and its rated reliability exceeds 600000 hours.
IC670GBI102D
