IC693CHS392 GE 90-30 series platform is compatible with the extension of the substrate

Description

IC693CHS392 GE 90-30 series platform is compatible with the extension of the substrate

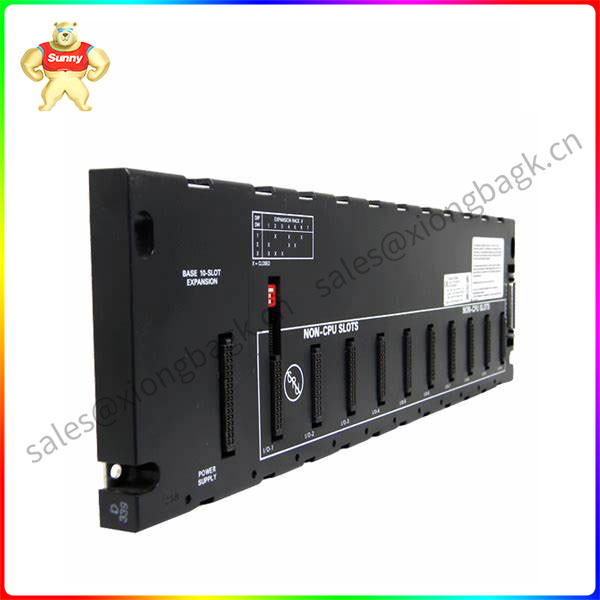

The IC693CHS392 is an expansion substrate compatible with the 90-30 series platforms. The hardware allows interconnection of additional substrates carrying 90-30 series modules to maximize the capabilities of the central controller and meet the control requirements of the system, particularly to accommodate a greater number of I/O points and to achieve special functions. IC693CHS392 to
Formerly manufactured by GE Fanuc Automation, now acquired by Emerson Automation. The substrate provides ten (10) mounting slots for up to ten 90-30 series standard /O modules and optional modules. The substrate is compatible with CPUs 331, 340, and 341, and can connect up to four (4) substrates and cpus
Up to seven (7) substrates can be installed for 350 and later versions. When connecting the substrate to the CPU substrate, the maximum cable length must not exceed 50 feet or 15 meters; otherwise, the CPU will not recognize the expansion substrate, or the entire configuration will not be valid. In addition, smart modules (such as PCM, ADC, BEM330 and CMM modules) and extensions
The installation of the substrate is incompatible. These modules are installed on the CPU baseboard. In addition to the V/O slot, the substrate also provides a power slot in which the power modules for power supply and distribution are installed. Expansion ports are also provided to allow interconnection with other expansion substrates. The substrate is designed for panel mounting only, through
Secure through the mounting plate located on the far left and far right of the hardwiring. Proper grounding must also be observed to protect the module and minimize electrical noise.
The IC693CHS392 substrate is an expansion substrate for GE Fanuc. It is compatible with 90-30GE series PLC systems. It is a PLC case, but can also be used as an extension for other/OS in different locations. The substrate is used in conjunction with a PLC system or by connecting it to a personal computer using a PCI card.
It can connect up to seven cpus at a time, depending on the CPU model. The substrate is rated at 5 volts DC. It is rated for 150 mah. The substrate is 443 mm long, 142 mm wide and 130 mm high. The IC693CHS392 base board is equipped with a 25-pin female D-type IO expansion connector on the right side for effective connection with other base boards
