Description

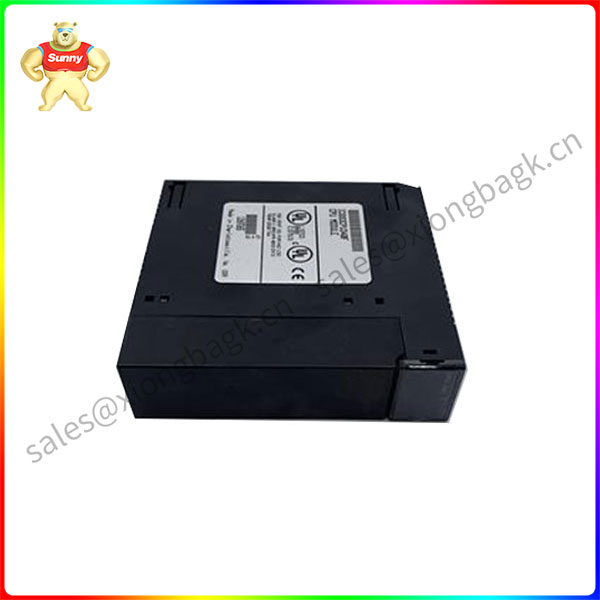

IC693CPU340 is a one slot CPU 340 Module with 32 Kbytes User Memory and 10K Registers. It has one CPU baseplate and four expansion baseplates for each system. The IC693CPU340 has a power supply that needs a load of 350 milliamps from +5 VDC supply. It uses processor 80188 that has a processing speed of 10 Megahertz. Operating Temperature of IC693CPU340 is 0 to 60 degrees C (32 to 140 degrees F) ambient. Usually, the Scanning Rate of IC693CPU340 is 0.3 milliseconds per 1K of logic (Boolean contacts). Firmware as the highest User Program Memory gives out 9.0, 240K Bytes. The exact size of the present user program memory relies on the number designed for the %R, %AI, and %AQ composed word memory types. It also has discrete input and discrete output points of 512. The CPU 340 has a Discrete Global Memory -%G of 1280 bits
The IC693CPU340 Analog Inputs-%A1 and Analog output-%AQ consist of 128 words and 64 words respectively. Further, it comprises of a system register with 16 words that can only be used to reference table viewing and does not allow referencing in the user logic program. The time count for the module is normally 680 with the existence of a shift register. The module has Built-in Ports 1 (uses the connector on PLC power supply). This port holds up the SNP/SNP-X slave protocols which need CMM module for SNP/SNP-X master. In terms of Communication, it has a LAN – guide multidrop. It also offers assistance to Ethernet, FIP, Profibus, GBC, GCM and GCM+ option modules. IC693CPU340 uses RAM and optional Flash as memory storage in order to store the necessary data.
IC693CPU340
The IC693CPU340 module is a 20 Megahertz CPU module for the Series 90-30 PLC systems from GE Fanuc. The IC693CPU340 module is based on the 80C188XL processor. The input points and output points supported by the IC693CPU340 module are 512 of each. The total register memory is 19.9 kilobytes. The maximum user program memory is 32 kilobytes. The IC693CPU340 module does not support floating point math. The IC693CPU340 module uses flash memory for user program storage. Flash memory operations, including the read, write, and verify functions, are accessed from the Program Utilities Function menu or from another Program Utilities screen in the Logicmaster 90-30, 20, or Micro programming software. The State Logic Processor (SLP) module is installed in a Series 90-30 PLC ladder logic control system to provide real-time multi-tasking control for machine applications.
The Series 90-30 SLP module can only be installed in a Series 90-30 PLC system that uses a model 331 CPU module, a model 340 CPU module like the IC693CPU340 module, or a model 341 CPU module. The number of 16-channel analog input modules supported by the IC693CPU340 module is 12. The number of 2-channel analog voltage output modules supported by the IC693CPU340 module is 30. The number of 2-channel current output modules supported by the IC693CPU340 module is 15. The number of 8-channel output modules supported by the IC693CPU340 module is 32. The IC693CPU340 module supports 32 high-speed counter modules. The IC693CPU340 module supports 16 I/O processor modules. The current consumption of the IC693CPU340 module is 490 milliamps at 5 Volts DC. The IC693CPU340 module is a modular CPU. GE Fanuc also manufactures embedded CPUs which are comparatively more cost-effective but less powerful than the CPU modules.
