Description
IC693DNM200-BD GE Series 90-30 components
[service contact information]
Tel: 18059884797 (WeChat with the same number)
QQ：3095989363
Email: sales@xiongbagk.cn
Address: Unit 2009, Chuangxiang Center, No.1733, Lvling Road, Siming District, Xiamen
① 24-hour email reply (12 hours);
③ For shipment to countries outside Asia, please contact the seller.
| Brand | GE Fanuc |
| Series | Series 90-30 |
| Manufacturer | GE Fanuc |
| Part Number | IC693DNM200 |
| Product Description | DeviceNet Master Module |
| Compatibility | Series 90-30, PACSystems RX3i |
| Communication ports | One (1) DeviceNet terminal; One (1) Service port |
| Supported network | DeviceNet |
| Communication speed | 125K, 250K and 500K |
| Supported data rates | 125K, 250K and 500K Baud |
| Module location | Any slot of Series 90-30 except slots 0 and 1 |
| Rated voltage | 12 to 24 Volts DC, positive logic |
| Module Width | Single slot |
| ON-state voltage drop | 0.3 Volts DC |
The IC693DNM200 module is a GE Fanuc device net master module of the 90-30 series. It has a rated voltage of 12-24VDC positive logic with an ON-state voltage drop of 0.3 V DC. The ON and OFF response times are 0.5ms maximum. Furthermore, the master module comes with 32 output points organized in groups of four with each group having 8 points. It has an inrush current of 5.4 Amps for 10ms and an output current is 0.5 Amps per point with a 4Amps current per group and 3 Amps maximum per group common pin. It exchanges I/O messages and custom explicit messages with up to 63 other devices on the network. On DeviceNet networks that include a higher-level host computer, this module’s built-in server function can be used for both automatic data transfer and custom explicit messaging with the master.

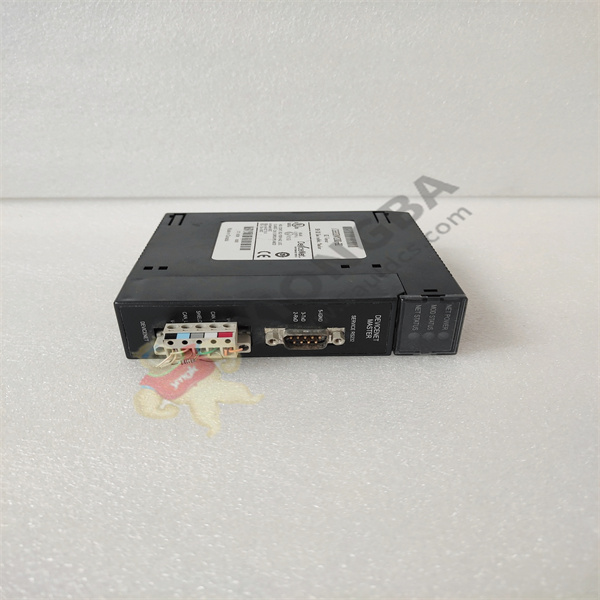

IC693DNM200-BD

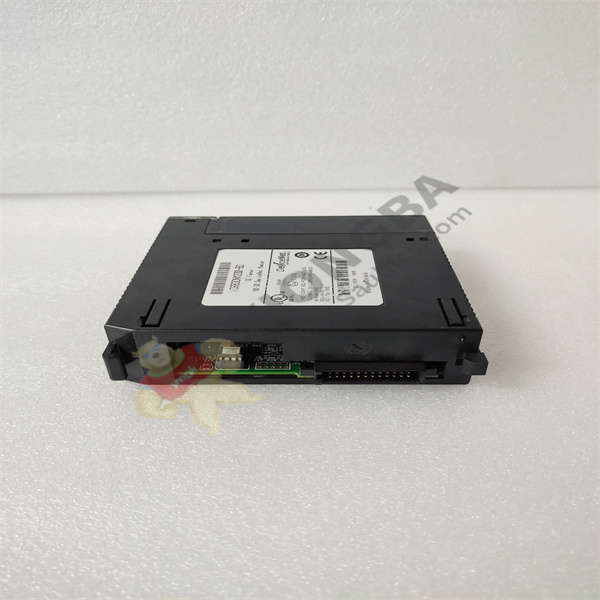

IC693DNM200-BD

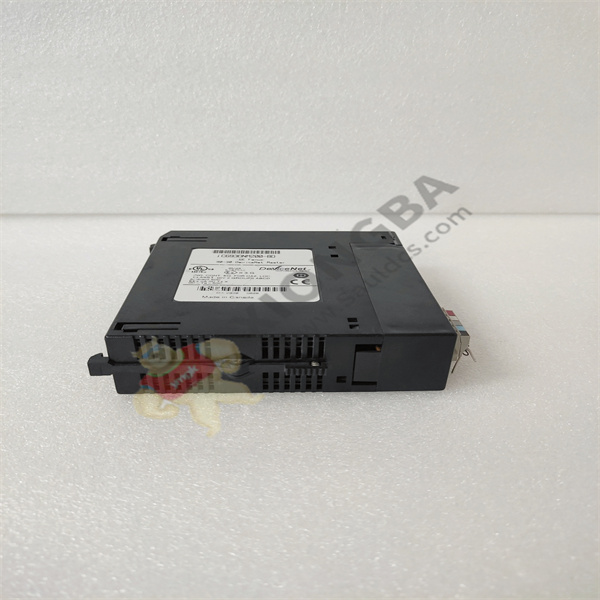

IC693DNM200-BD

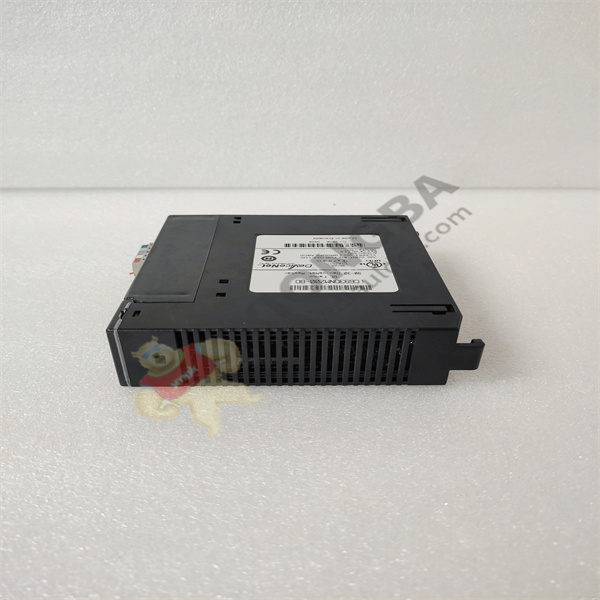

IC693DNM200-BD

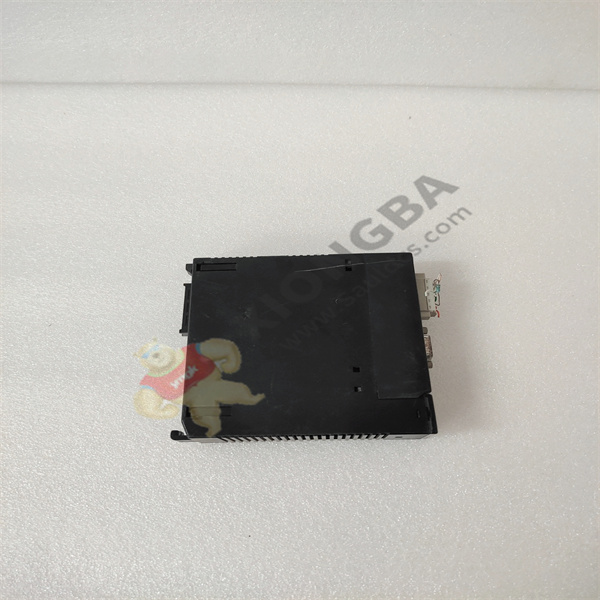

IC693DNM200-BD
The IC693DNM200 is a DeviceNet Master Module. This module is a single slot communication module that is part of the Series 90-30 Programmable Logic Controller (PLC) platform being manufactured by formerly by GE Fanuc, now under Emerson Automation. This module is provided with a single DeviceNet terminal. It also has One (1) RS232 9-pin D shell female port that is used as module service port.
The IC693DNM200 supports all data rates of DeviceNet protocol particularly, 125K, 250K and 500K transmission rates. Up to 255 Bytes of input data and 255 Bytes of output data can be transferred by the master per slave device and up to 3972 bytes of input data and 3972 Bytes of output data can be transferred to this master module. Additionally, a total of 126 I/O connections can be established using this module as it is capable of communicating up to 63 slave devices, where each slave assignable with up to Two (2) I/O station. The module’s supported and configurable data connection are Polled, Strobe, Cyclic or COS. Explicit messaging, Unconnected Message Manager (UCMM) and One (1) Proxy connection per slave unit is also supported by this DeviceNet Master Module.
In addition, this module can operate in dual mode, as Master and Slave simultaneously. Fault behavior specifically during communication loss can be configured to provide acceptable system reaction in the event of the said error. This module also comes with an upgradeable firmware, allowing module updates and bug fixes to be downloaded via the RS232 service port.
