Description

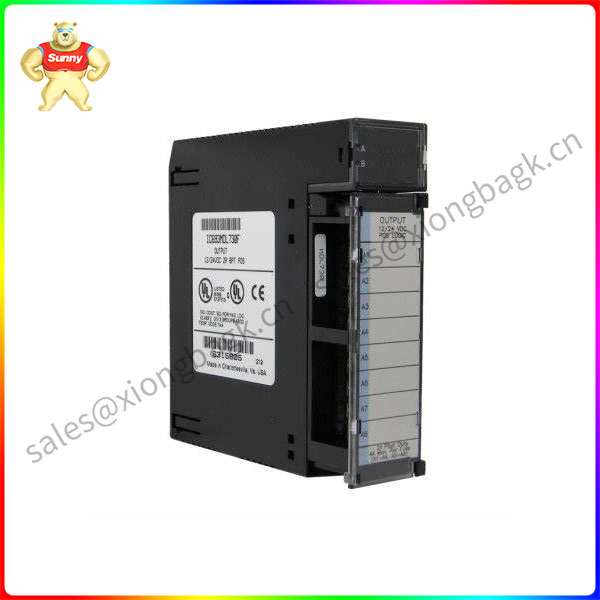

IC693MDL730 GE Discrete output module
Technical Requirements:
The IC693MDL730 is a positive logic output module that belongs to the 90-30 series Programmable Logic Controller (PLC) product family of General Electric Fanuc, now owned by Emerson Automation. The module has eight (8) discrete output channels in a single set, providing an output voltage range of 12-24 VDC with a ripple of + 20%, -15%. Each channel provides an output current of 2 amps per point; 2 amps per fuse at 60 ° C; 4 amps per fuse at 50 degrees Celsius. The IC693MDL730 provides up to 1500 volts of isolation between the field side and the logical side. The surge current in the output channel is rated at 9.4 amps for 10 ms; The maximum output voltage drop is 12 volts; The maximum turn-off state leakage current is 1 mA, and the typical switching response time for each transition is 2ms.
The module occupies a slot on the 90-30 substrate and is compatible with any I/O slot on the 90-30 series five (5) or ten (10) slot substrate. When all outputs are energized, its current consumption is 55 mA from the 5-VDC bus on the backplane. The IC693MDL730 is compatible with a variety of electrical loads, especially motor starters, solenos and indicators. The external power supply must be connected to the module to provide operating power. The status LED indicator is installed on the front panel of the module and consists of a blown fuse indicator, a module failure indicator, and eight (8) channel indicators assigned to each output channel and describing the operating status of each output point. The module comes with a detachable terminal board to simplify maintenance.
The IC693MDL730 PLC module features a DC voltage rating of 12 to 24 volts, positive logic and a 2 amp output current. This component features DC power, which has 8 points. The device has a load current of 2 amps per point with response times of 2 ms on and 2 ms off. Output type is transistor output, module with positive polarity. The connector type is a terminal board with 20 screws and is included in the module.
1.IC693MDL730 has several output channels
The IC693MDL730 has eight (8) output channels.
2. Does IC693MDL730 have a separate and isolated output channel?
No. The output module has only one (1) channel group.
3. Is IC693MDL730 equipped with a mobile terminal?
Yes. The terminal board of the module is removable.
