Description
Technical Specifications IC694ALG392

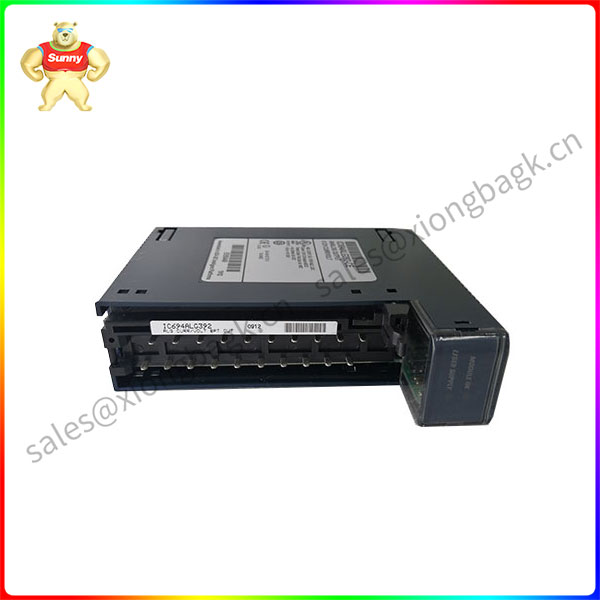

GE Fanuc IC694ALG392 high density analog output module is an 8 channel current/voltage analog output module designed for GE RX3i PACSystems control system. The module provides eight single-ended output channels, which can accept current loop output or voltage output. The choice between current or voltage outputs can be made through software configuration. Output can be configured in 0 to 10 volt DC(monopole), -10 to +10 volt DC(bipolar), 0 to 20 mah or 4 to 20 mah output range. Each IC694ALG392 module output is capable of converting 15 to 16 bits of binary data from the CPU into analog data for the output device. The IC694ALG392 module refreshes/updates the output channel every 8 ms. Operators can switch between current mode and voltage mode with a simple software configuration. The IC694ALG392 module reports open circuit and other faults to the CPU in current mode.
The IC694ALG392 output module must obtain a 24-volt DC operating power supply from the external power supply provided by the user. The power supply can be connected to the TB1 connector on the left side of the backplane or directly to the terminal board of the module. It supports 24 volt DC customer power, providing a 20 to 30 volt DC voltage range. The IC694ALG392 module has a maximum backplane current consumption of 110 mah at 5 volt DC and a rated power consumption of 315 mah at 24 volt DC. Each output of the IC694ALG392 module is factory calibrated and does not require any additional field calibration. The IC694ALG392 module can be installed in any I/O slot on the RX3i PLC rack and configured using Proficy Machine Edition configuration software. The IC694ALG392 module has a front panel “Module Normal” LED and a “User Power” LED powered by a 5-volt DC backplane power bus.
