IC694MDL231 Isolated Input module

The IC694MDL231 input module is a 240 Volts AC rated RX3i isolated input module. It comes

with 8 input points. The module has been manufactured by GE Fanuc. All of the input points are isolated.

The module has an open architecture and it should be handled and installed carefully. Thus input module helps

to lower the noise level in the PLC system. Each of the input points comes with a common power input terminal.

Each of the circuits in the input module is reactive and it is compatible with a variety of input devices, pushbuttons,

sensors, and switches. The input points on the module are very flexible. Each individual module can be

provided with voltage from an external power supply. Note that the module works only with an AC power supply.

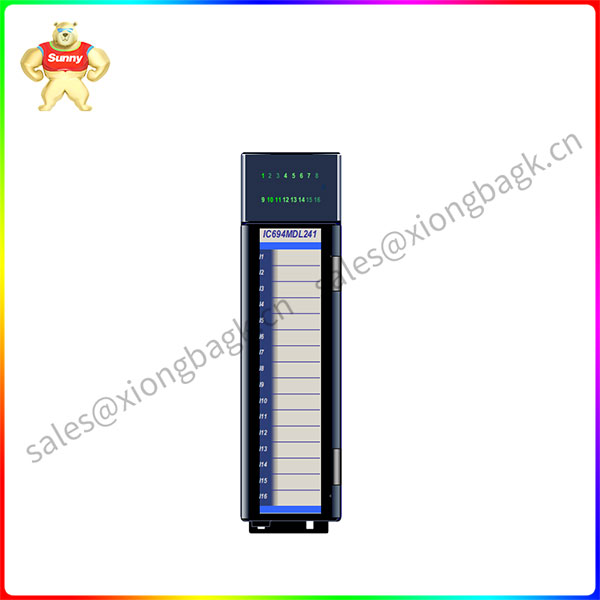

IC694MDL241

The IC694MDL231 input module has an input frequency in the range of 50 to 60 Hertz. For isolation, the field to

backplane voltage is 250 Volts AC continuous, and the isolation voltage to the frame is 1500 Volts AC for a time

period of 60 seconds. The on-state voltage of the module is set between 148 and 264 Volts AC, whereas the offset

voltage lies between 0 and 40 Volts AC. The IC694MDL231 input module consumes 60 milliamps of current from the

bus on the backplane of the module. The backplane bus has a voltage rating of 5 Volts. The front of the module has

8 LED indicators for each of the 8 points. The LED indicators show the on and off status of the input points. The

IC694MDL231 input module is compatible with the RX3i PLC system. The temperature of the installation area should be between 0 and 60 degrees Celsius.
