Description
IC695CPE310-ACAT GE CPU Processor
Can be transported to all parts of the world. (Exclude areas that cannot be transported under special circumstances! )
If necessary, please contact customer service.
[service contact information]
Tel: 18059884797 (WeChat with the same number)
QQ:3095989363
Email: sales@xiongbagk.cn
Address: Unit 2009, Chuangxiang Center, No.1733, Lvling Road, Siming District, Xiamen
① 24-hour email reply (12 hours);
③ For shipment to countries outside Asia, please contact the seller.

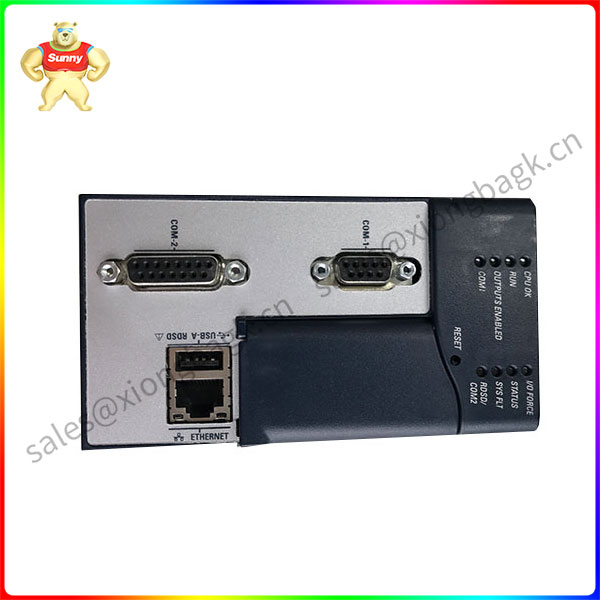

The IC695CPE310 CPU module is a GE Fanuc CPU from the RX3i PACSystems product line. Its processor is an Atom processor that has a maximum processing speed of 1 GHz. The IC695CPE310 CPU module comes with both SRAM and Flash memory, and it can store program data in its 10 MB uf user memory. The power requirements of the IC695CPE310 CPU module include 1 Amp of current at a backplane voltage rating of 3.3 Volts DC or 5 Volts DC, and 0.5 Amps at a backplane voltage rating of 24 Volts DC. When the RX3i PACSystems IC695CPE310 CPU module is installed in a complete RX3i PACSystems machine control system, it must be installed in the system’s central universal backplane. This CPU cannot function properly if it is installed in an expansion backplane or a remote backplane.
The GE Fanuc IC695CPE310 CPU module from the RX3i PACSystems series comes with a real-time clock that is battery backed. It can also back up its data dynamically. One of the ports on the IC695CPE310 CPU module is a USB port that is a Type A 2.0 master USB port which can be used for configuring the CPU’s applications and also for downloading the application data. It can support 2 Ethernet programmer connections at a time. The 2 serial ports on the IC695CPE310 CPU module are an RS-485 serial port and an RS-232 serial port. The serial protocols that this CPU module supports are the SNP Slave protocol, the Serial I/O protocol, and the Modbus RTU Slave protocol.
The IC695CPE310 is a CPU in the GE Fanuc PACSystem RX3i Series. The CPU can perform real-time control of machines, processes, and material handling systems. It communicates with I/O and Intelligent Option modules over a dual-purpose PCI and serial backplane.
IC695CPE310 has a 1.1 GHz Atom processor and 10 MB of memory. Its embedded Ethernet interface accommodates two connections rated for 10Mb/sec and 100Mb/sec. It also has RS-485 and RS-232 serial ports. The module supports up to 512 program blocks, each of which can be as large as 128 KB. IC695CPE310 comprehends the Modbus RTU Slave, SNP, and Serial I/O protocols, while using the SNP protocol to communicate with human-machine interface (HMI) devices.
You can program the IC695CPE310 in Ladder Diagram, Structured Text, C, or Function Block Diagram programming languages. Labeled LED indicators on the unit housing can be green, red, off, or blinking when the unit is powered up. This makes troubleshooting efficient, and lets you verify system status at a glance.
IC695CPE310 can be installed in any pair of slots in the main RX3i controller rack except for the slots with the two highest numbers on them.
The processor in IC695CPE310 is approximately three times faster than the 300 MHz Celeron processor in the otherwise-similar model C695CPU310 . You can upgrade from CPU310 to CPE310 without changing legacy PME software. Please note that if you do decide to upgrade to CPE310 from CPU310, then the RS-232 port on CPE310 does not provide 5V power on pin 5.
Application industry:
Power plants, steel mills, automobiles, petrochemicals, tobacco, metallurgy
Note: Please follow the instruction manual of this product to install and debug, so as not to damage the product
Reasons for choosing us—-Seven core advantages:
Brand new imported:
All products are produced and supplied by foreign original factories
Rigorous test:
All products have been strictly tested for a long time by professional and technical personnel before delivery.
Free product consultation:
Before purchasing and after using, if you encounter technical problems with the product, we will provide you with a 24-hour service hotline for free product consultation.
One year warranty:
Brand new product is guaranteed for one year
15 days replacement:
Within 15 days, there is no reason to return or exchange for non-artificial quality problems
Order directly from the original factory abroad:
Eliminate intermediate links, minimize costs, have a large number of spot stocks, and directly supply the country
SF Express:
National SF Express Free Shipping, within the range arrives the next day
