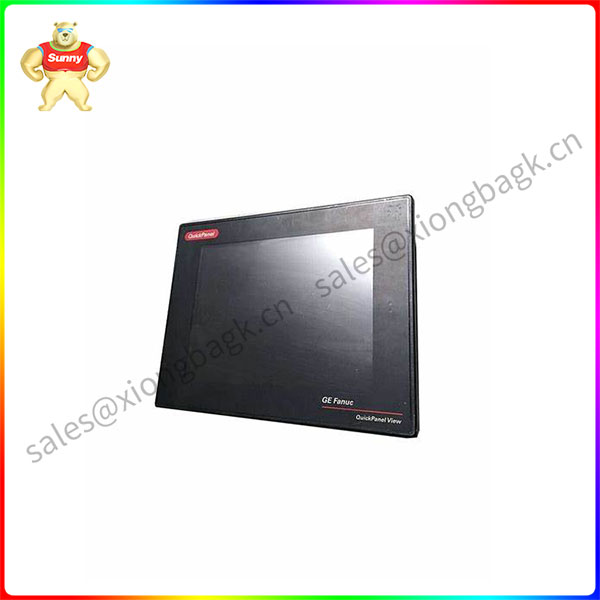

IC754VSI12CTD-EG Operation panel

The IC754VSI12CTD allows any operator or user to monitor or control a connected machine or process through the provided monitor, touch input interface, and communication interface. To monitor the system, the supplied 12-inch color thin-film transistor (TFT) display provides visualization of the process through custom-designed simulations. In addition, the color display supports the implementation of color coded animation and status display to improve the level of information. Control commands are entered through a touch screen, which allows the operator to enter commands directly by touching the appropriate runtime icon or object. Communication with the controller is accomplished in point-to-point or multipoint serial topologies using a single RS232 / RS485 combination port, while networking and multi-node communication is accomplished through an Ethernet communication interface that supports 10/100 Mbps transmission rates
