Description

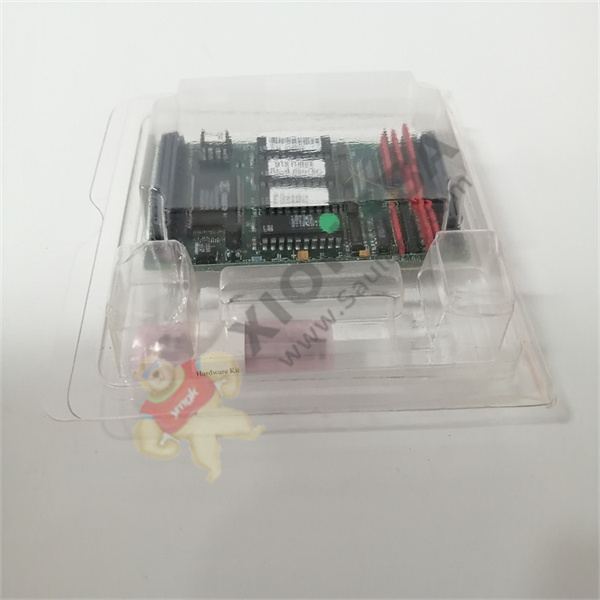

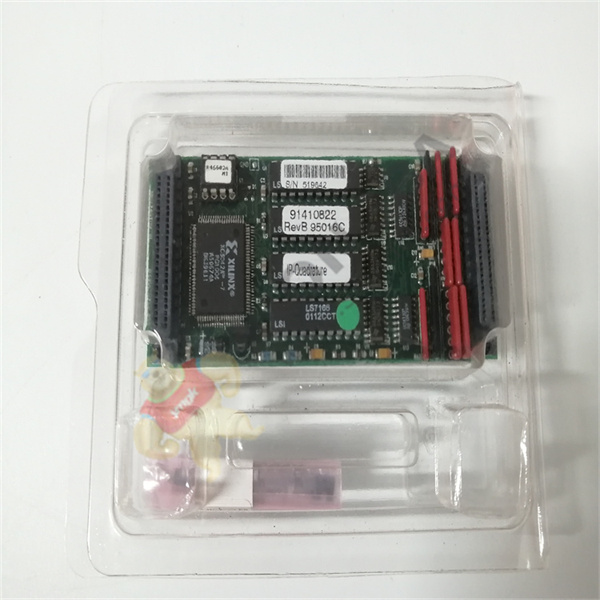

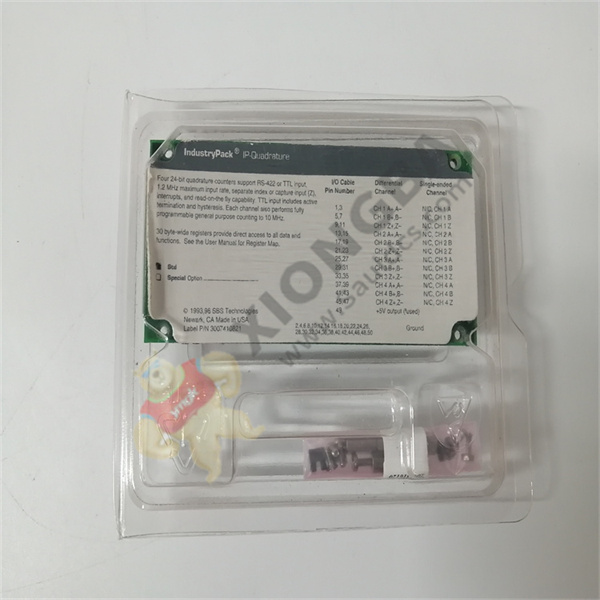

IP-QUADRATURE GE Orthogonal encoder
Can be transported to all parts of the world. (Exclude areas that cannot be transported under special circumstances! )
If necessary, please contact customer service.
[service contact information]
Tel: 18059884797 (WeChat with the same number)
QQ:3095989363
Email: sales@xiongbagk.cn
Address: Unit 2009, Chuangxiang Center, No.1733, Lvling Road, Siming District, Xiamen
① 24-hour email reply (12 hours);
③ For shipment to countries outside Asia, please contact the seller.
Four quadrature decoder channels, independently programmable
• Any channel may also act as a general purpose counter
• 24-bit resolution per channel
• DC to 10 MHz general purpose count rates
• DC to 1.2 MHz quadrature count rates (higher count rate in X1 and X2 modes)
• Counters readable “on the fly”—24-bit output register
• 24-bit register for capture or match interrupt on each channel
• Inputs may be differential or single-ended
• Direct connection to most sensors
• Programmable TTL resistor termination
• Each channel has a programmable control input
• Control input may be used to capture exact position on the fly
• Each channel may be used as a general purpose up/down counter
• Full programmable interrupt support
• Programmable modes; programmable prescaler: 1X, 2X, 4X.
• Individually programmable polarities for Count and Control inputs
• All CMOS
• Up to 16 counter channels per VME slot
IP-Quadrature provides high density, cost-effective flexible implementation of four quadrature decoder channels. Channels may also be used as general purpose counters. Four independent channels provide 24-bit resolution, programmable modes, programmable polarity, interrupt capability, differential or single-ended (RS-422 or TTL/CMOS) input, read-on-the-fly capability, and a count frequency of 0 to 10 MHz. Quadrature encoders are popular sensors that provide accurate, low cost incremental motion sensing. Most commonly, they are shaft encoders that provide 512 to 2048 counts per revolution. They are also commonly used as linear encoders with resolutions down to 0.005 inch. They are available in nearly any length desired. Most encoders are now optical, using molded assemblies consisting of a pair of LEDs, lenses, photosensors, and simple electronics. For rotary motion the assembly senses alternating opaque and clear lines on a rotating wheel. For linear motion the alternating lines may be on a fixed bar and the sensor assembly moves, or vice-versa. The pair of LED and photo-sensors are offset about one-half line width so that direction of motion may be sensed by observing the relative phase of the two outputs. Typical quadrature encoder outputs are a pair of digital logic signals that are nominally 90° out of phase. Some encoders also provide an “index” pulse output once per revolution to provide absolute position information. Most modern encoders run from +5 volts and provide CMOS/TTL logic outputs and/or RS-422 differential logic outputs. RS-422 is recommended where possible because of its inherent noise immunity and the ability to run long distances. TTL logic levels should normally be restricted to cables less than ten feet in length. Quadrature encoders are available from Hewlett-Packard, US Digital, and other sources.
Application industry:
Power plants, steel mills, automobiles, petrochemicals, tobacco, metallurgy
Note: Please follow the instruction manual of this product to install and debug, so as not to damage the product
Reasons for choosing us—-Seven core advantages:
Brand new imported:
All products are produced and supplied by foreign original factories
Rigorous test:
All products have been strictly tested for a long time by professional and technical personnel before delivery.
Free product consultation:
Before purchasing and after using, if you encounter technical problems with the product, we will provide you with a 24-hour service hotline for free product consultation.
One year warranty:
Brand new product is guaranteed for one year
15 days replacement:
Within 15 days, there is no reason to return or exchange for non-artificial quality problems
Order directly from the original factory abroad:
Eliminate intermediate links, minimize costs, have a large number of spot stocks, and directly supply the country
SF Express:
National SF Express Free Shipping, within the range arrives the next day
