IS200VTCCH1CBB GE Mark VI printed circuit board
Can be transported to all parts of the world. (Exclude areas that cannot be transported under special circumstances! )
If necessary, please contact customer service.
[service contact information]
Tel: 18059884797 (WeChat with the same number)
QQ：3095989363
Email: sales@xiongbagk.cn
Address: Unit 2009, Chuangxiang Center, No.1733, Lvling Road, Siming District, Xiamen
① 24-hour email reply (12 hours);
③ For shipment to countries outside Asia, please contact the seller.
Specializing in the world-renowned brand DCS system, robot system, large-scale servo control system and module.
Main brand: Allen Bradley、BentlyNevada、ABB、Emerson Ovation、Honeywell DCS、Rockwell ICS TRICONEX、FOXBORO、Schneider PLC、GE Fanuc、Motorola、HIMA、Prosoft、Woodward、MOOG、
RexrothAnd other imported industrial parts.
IS200VTCCH1CBB
IS200VTCCH1CBB
IS200VTCCH1CBB
IS200VTCCH1CBB
IS200VTCCH1CBB
The IS200VTCCH1CBB is a Thermocouple Input board designed by General Electric for their Mark VI system. The Mark VI is specifically designed for the management of gas and steam turbines. The system is designed to be scalable for use with both large and small turbine set-ups. The hardware and software of the Mark VI are designed with optimum turbine performance in mind and are designed specifically for those end uses. This system offers triple redundant backups on critical controls. This often occurs within the Control Module, which is connected to an HMI/Operator Interface that allows users access to system data, alarm states, and maintenance tools.

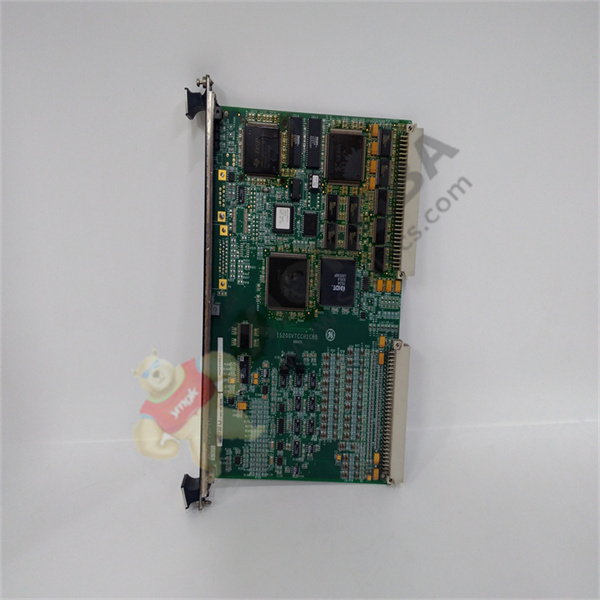

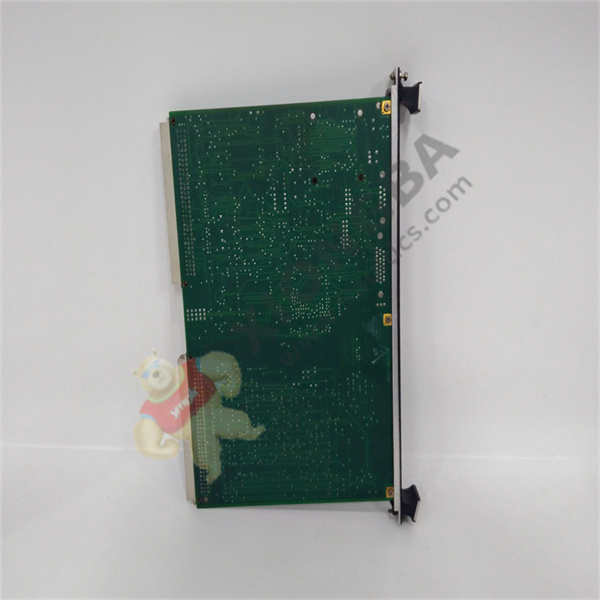

The IS200VTCCH1CBB is marked with several codes, including 94VO, E99006, Type 6, and 2606. The board and the front faceplate are both marked with the GE logo. The front faceplate attaches to the PCB using screw connections and includes three LED components that are stacked one above each other near the top edge of the board.
The IS200VTCCH1CBB accepts E, J, K, S and T type thermocouples. These can be grounded or ungrounded. Thermocouples can be located up to three hundred meters from the control cabinet. There is a maximum two-way cable resistance of 450 Ω. Thermocouples that are deemed ‘out of hardware limits’ are taken out of scanned inputs to prevent that data from influencing other inputs.

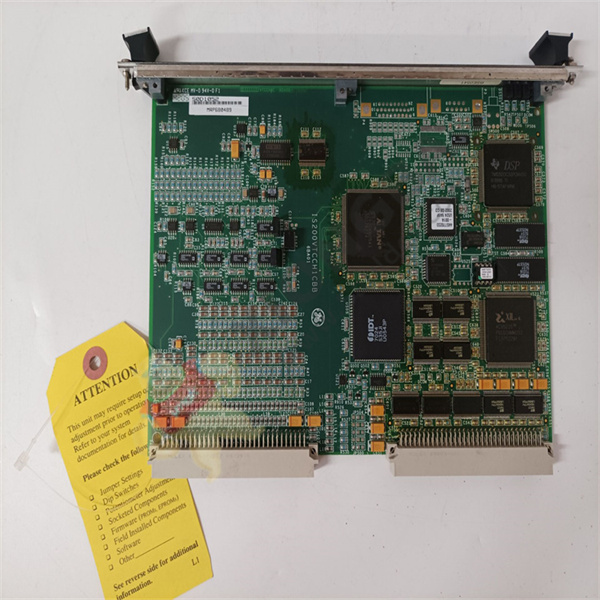

The IS200VTCCH1CBB has two backplanes (P1 and P2,) and four other connectors. The board has inductor coils or beads (L1 through L19.) It also has TP test points, diodes, resistors, and capacitors. Integrated circuits located on the board include the Xilinx Spartan XCS30 FPGA, IDT S35J dual port SRAM chips, DSP TMS320C32PCMA50 Digital Serial Processor, and IDT S15Y CMOS Static RAM chips.
Application industry:
Power plants, steel mills, automobiles, petrochemicals, tobacco, metallurgy
Note: Please follow the instruction manual of this product to install and debug, so as not to damage the product
