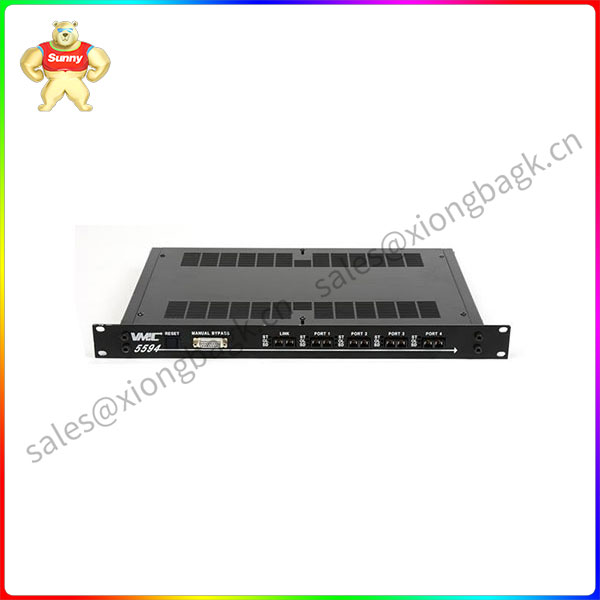

VMIC-5594 Reflective Memory Card

• High-speed data transmission: Utilizing optical fiber interfaces, it supports a maximum data transmission rate of 2.5 Gbps, ensuring real-time data exchange.

• Low-latency communication: Hardware-level data broadcasting mechanism with latency as low as the nanosecond level, avoiding software protocol stack overhead.

• Large-scale network support: Supports up to 256 nodes interconnected, suitable for distributed systems.

• Strong reliability design: Supports ECC error checking to ensure data integrity; It has the ability to resist vibration and shock, and can adapt to harsh environments.

• Plug and play: Hardware-level data sharing simplifies system integration and supports hot-swappable functionality.

Add to quote
Category:

Description

Product Overview

VMIC-5594 is a high-performance Reflective Memory card based on the PCI architecture launched by GE Fanuc (now affiliated with Abaco Systems). This product is specifically designed for real-time systems that require high-speed and deterministic data sharing. It enables low-latency data synchronization among multiple computing nodes through optical fiber networks and is widely used in aerospace, national defense, industrial automation and other fields.

Technical features

• High-speed data transmission: Utilizing optical fiber interfaces, it supports a maximum data transmission rate of 2.5 Gbps, ensuring real-time data exchange.

• Low-latency communication: Hardware-level data broadcasting mechanism with latency as low as the nanosecond level, avoiding software protocol stack overhead.

• Large-scale network support: Supports up to 256 nodes interconnected, suitable for distributed systems.

• Strong reliability design: Supports ECC error checking to ensure data integrity; It has the ability to resist vibration and shock, and can adapt to harsh environments.

• Plug and play: Hardware-level data sharing simplifies system integration and supports hot-swappable functionality.

Technical specifications

• Bus interface: PCI 2.2 standard, 32-bit / 64-bit, 33/66 MHz

• Transmission rate: 2.5 Gbps (Full duplex)

• Memory capacity: 128 MB or 256 MB (optional)

• Network latency: < 100 nanoseconds

• Maximum number of nodes: 256

VMIC-5594

• Transmission distance: The maximum distance for multimode optical fiber is 300 meters, and for single-mode optical fiber, it is 10 kilometers

• Operating system support: Windows, Linux, VxWorks

• Operating temperature: 0°C to +55°C (commercial grade); -40°C to +85°C (Extended Class)

• Power consumption: Typical value 5W, maximum value 8W

Application scenarios

Real-time data synchronization of the flight simulator

Industrial process control systems

Data acquisition for the test and measurement system

High-energy physics experiment equipment

Supporting resources

• Provide complete API interfaces and development toolkits

• Supports multi-platform drivers (Windows/Linux/VxWorks)

• Detailed technical documentation and integration guidelines
