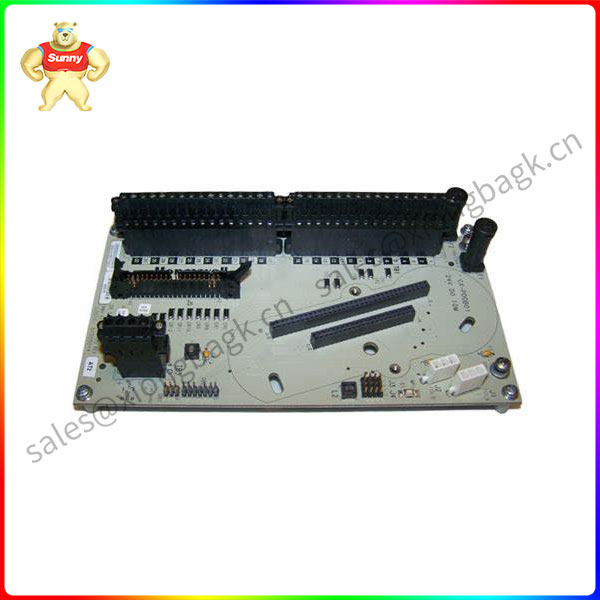

CC-TDOB01 HONEYWELL Digital output module

Description

CC-TDOB01 HONEYWELL Digital output module

Manufacturer: Honeywell
Product number :CC-TDOB01
Product type: Digital output module
Digital output module backplane
Shipping weight :3 kg

5.5 Simulation output IOTA models cC-TAOX01, CC-TAOX11, CC-TAON01 and CC-TAON11
This CSeries analog outputs IOT a board that is made up of the following information and graphics. Information of the instrument parts visited:
5.5.1 Field cabling and module protection – Simulate the output module
The volume of output modules provides the output current range of Oma, as well as analog output based on 2.9 mA to 21.1 mA requests made by a C Series controller. The output includes the current of the HART modulated signal, not exceeding 22.5 GHZ
· Action field of short circuit protection Short circuit circuit Protection harping of two non-arc discharges in two non-flammable areas when split.
· Each field wire pair can shorten Ted together without dam age to module or IOTA. Inputing this same module to other channels will not be affected.
A +30 volt DC power can continuously applied acrosOU is what T+ to O universal time – the terminal sIOT has no module or IOTA damage (i.e. the positive power lead is connected to OUT+ and the negative lead is connected to OUT-). To prevent damage to the IOTA surge protection diode, the current must be limited to 500 mAdc only if the source has applied d opposite polarity (i.e., the positive lead source of pos is connected to the output -, and the negative lead is attached to the OUT+). The 500 mAdc limit should not be applied to the positive polarity Case. 5.5.2 IOT Circuit Boards and connections – analog output modules C series Tangentially volumes have a 6 inch output showing non-redundant IOTA.

All CSeries components feature an innovative design that supports enhanced thermal management. This unique appearance provides a significant overall size reduction for the equivalent function. The unique features of Series C I/O include:

•I/O modules and field terminals are combined in the same area. The I/O module is inserted into the IOTA to eliminate the need for a separate chassis to house the electronic components.

• Two-stage “detachable” terminals land on the housing’s on-site wires, providing easier device installation and maintenance.

• On-site power is provided via IOTA, without the need for additional power and interlink wiring marshalling.

• Redundancy can be used directly on IOTA without any external cables or redundancy control by simply adding a second IOM to IOTA.

• The innovative styling of the C Series is one of its unique features. This style is included to facilitate the effective use of control hardware in a system environment. These characteristics include:

• Install more efficient wiring vertically, as most field wiring applications require access to the system cabinet from the top or bottom.

• An “infosphere” that acts as a quick visual cue to draw the technician’s eye to important status information.

• “Tilt” design for effective thermal management within the cabinet housing. Because the CSeries allows for a significant increase in cabinet density, an effective thermal management system is key to high system availability.

• Prevent short circuits in input and output circuits to reduce the need for in-line fusing and reduce installation and maintenance costs.
