Description
The MVME51005E Single Board Computer Installation and Use provides the information you
will need to install and configure your MVME51005E Single Board Computer. It provides
specific preparation and installation information and data applicable to the board. The MVME51005E will hereafter

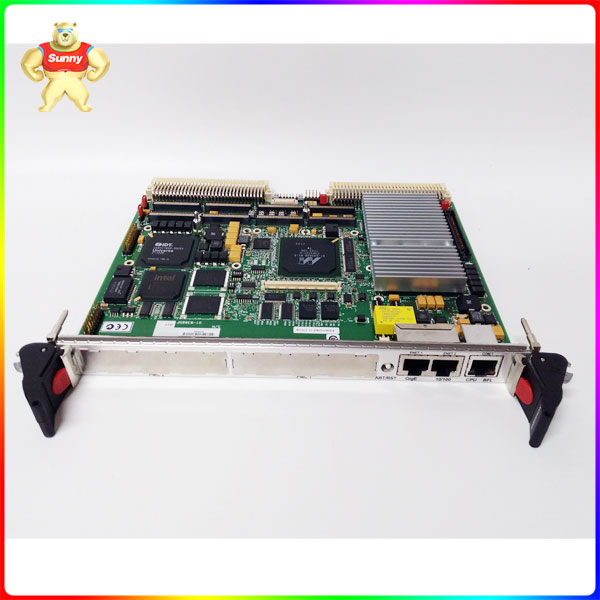

be referred to as the MVME5100. The MVME5100 is a high-performance VME single board computer
featuring the PowerPlus II architecture with a choice of processors—either the MPC7410 with AltiVec™
technology for algorithmic intensive computations or the low-power MPC750. As of the printing date of this manual,
the MVME5100 is available in the configurations shown below. Note: all models of the MVME5100 are
available with either VME Scanbe front panel or IEEE 1101 compatible front panel handles.
The MVME5100 interfaces to a VMEbus system via its P1 and P2 connectors and contains two IEEE 1386.1
PCI Mezzanine Card (PMC) Slots. The PMC Slots are 64-bit and support both front and rear I/O.
Additionally, the MVME5100 is user configurable by setting on-board jumpers. Two I/O modes are
possible: PMC mode or SBC mode (also called 761 or IPMC mode). The SBC mode uses the
IPMC712 I/O PMC and the MVME712M Transition Module, or the IPMC761 I/O PMC and the
MVME761 Transition Module. The SBC mode is backwards compatible with the MVME761 transition
card and the P2 adapter card (excluding PMC I/O routing) used on the MVME2600/2700 product.
This mode is accomplished by configuring the on-board jumpers and by attaching
an IPMC761 PMC in PMC slot 1. Secondary Ethernet is configured to the rear. PMC
mode is backwards compatible with the MVME2300/MVME2400 and is accomplished
by simply configuring the on-board jumpers. The following equipment list is appropriate for
use in an MVME5100 system: 1. PMCspan PCI expansion mezzanine module (mates with
MVME5100) 2. Peripheral Component Interconnect (PCI) Mezzanine Cards (PMCs) (installed on an MVME5100
board) 3. RAM500 memory mezzanine modules (installed on an MVME5100 board) 4. VME
system enclosure 5. System console terminal 6. Disk drives (and/or other I/O) and controllers 7. Operating system (and/or application software).
