BNC-2110   Desktop Mount Terminal Block

Description

BNC-2110   Desktop Mount Terminal Block

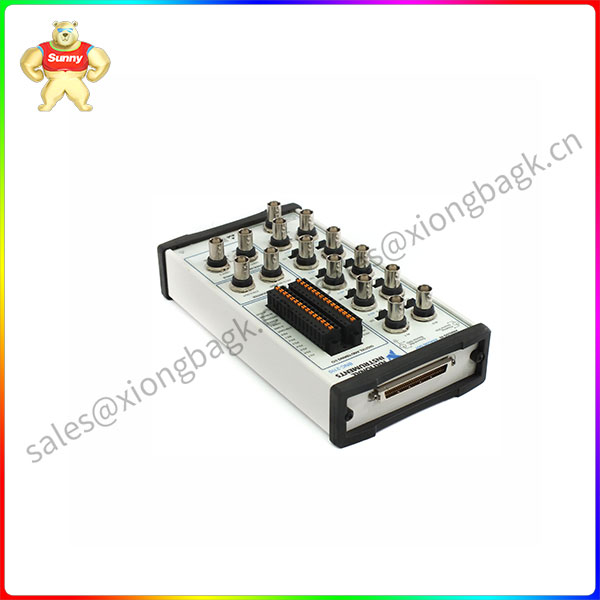

The BNC-2110 (Part Number: 777643-01) is a Shielded, DIN Rail, Desktop Mount Terminal Block. This

Terminal Block provides 68-Pin, female SCSI to 1-Pin, female BNC (qty 15), 30-pin, female Spring Terminal

connectivity. The NI BNC-2110 is designed to work with a variety of National Instruments multifunction I/O

and analog output devices. The BNC-2110 helps simplify the connection of analog signals, as well as some digital

signals to the DAQ device. With this Terminal Block, you can achieve better measurement integrity since the

BNC-2110 comes with a shielded enclosure. Desktop mount and DIN Rail mount configurations are possible with this Shielded Terminal Block.

The device is run using the NI-DAQmx driver software which is compatible with software packages such as

LabVIEW, LabWindows/CVI, or Measurement Studio. The device hardware can be configured using the Measurement & Automation Explorer (MAX) tool.

BNC-2110

The NI BNC-2110 can be used with 100-pin or 68-pin E/M/S Series or 68-pin NI-672x, NI-671x, and NI-673x Analog

Output (AO Series) DAQ devices. The National Instruments BNC-2110 is widely used in demanding production,

test, and laboratory settings. The BNC-2110 is solely intended for differential analog input signals. With this Terminal

Block, you can measure floating signals by moving the corresponding switch underneath the BNC connector to the

FS position. Moreover, this Terminal Block can measure ground-referenced signals as well. For ground-referenced

signals, move the switch underneath the BNC connector for the AI channel being used to the GS position. The

device is equipped with 15 BNC connectors, and has a 68-pin male SCSI male I/O connector.
