Name: Pxi-6528 PXI Digital input/output module
Brand: ABB
Availability: InStock

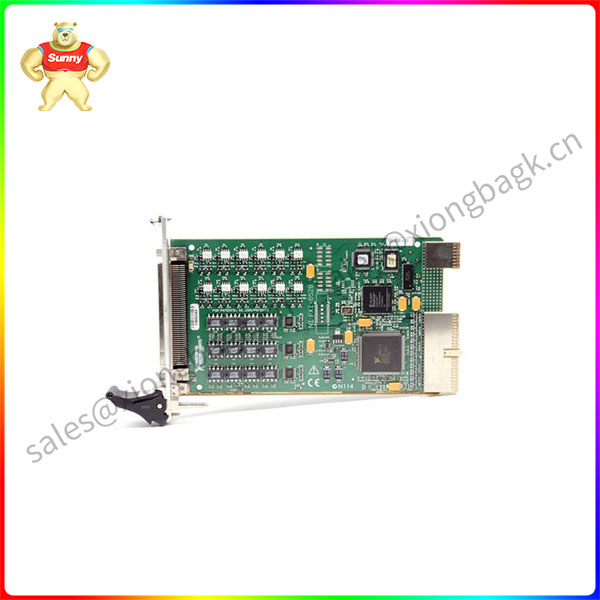

Pxi-6528 PXI Digital input/output module

This PXI digital I/O module I/O configuration does not require a jumper setup as it is completely software configurable. The PXI-6528 fully conforms to PCI local bus and PXI hardware standards and specifications. This is an intelligent system that automatically allocates all device resources, including input levels and base addresses.Like other National Instruments measuring equipment, the PXI-6528 comes with NI-DAQ driver software. The software has a wide range of visual interfaces and functions, which can be activated by the user from its software (such as LabWindows or LabVIEW), for all programmable features of the PXI-6528. The device comes with a 100-pin keyed socket SCSI connector. It has an input voltage range of -60 VDC to 60 VDC and a maximum input current of 3.0 mA.

Add to quote

Category: NI

Mail：sales@xiongbagk.cn
Phone/Wechat/Whatsapp：+86 18059884797

Description

This NI PXI-6528(part number :778543-01) is a PXI digital input/output module with a total of 48 channels :24 optical isolated digital inputs, 24 solid state relay outputs, isolation between channels. This model is a cost-effective industrial parallel digital I/O module with a built-in programmable power-on state. The module has a robust configuration and can provide up to 24 isolated input and output channels. It also has change detection, real-time System integration (RTSI), and digital filtering capabilities. This model is ideal for high voltage switching and isolation in laboratory and industrial environments.
