SCXI-1193 Radio frequency multiplexer

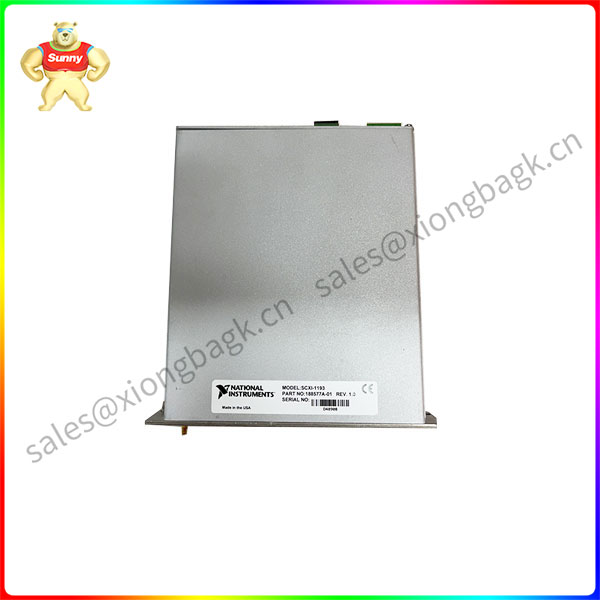

The SCXI-1193 is a radio frequency multiplexer switch module manufactured by National Instruments. It can be programmed to be

an unterminated multiplexer, an externally terminated multiplexer, or a sparse matrix with flexible dimensions. In addition,

the SCXI-1193 module is designed for integration with high frequency instruments such as PXI arbitrary waveform generators

and PXI oscilloscopes, enabling enhanced process control in a variety of ways.In physical dimensions, the SCXI-1193 module weighs

2 ounces and measures 1.2 x 6.8 x 7.8 inches. It features 36 MCX jacks for I/O connectors, 2 SMB jacks for triggering

connectors, relays made of silver palladium and gold, and a maximum scan rate of 100 operations per second.

SCXI-1193The SCXI-1193 module can implement the following topologies: four-way 8 x 1 multiplexer, four-way 4 x 1 terminated multiplexer,

dual-way 16 x 1 multiplexer, dual-way 8 x 1 terminated multiplexer, 32 x 1 multiplexer, 16 x 1 terminated multiplexer, and standalone

modules. In addition, it can be used in a variety of different cables, including MCX-MCX cables, MCX-BNC cables, MCX-SMB cables, or MCX-SMA cables.
