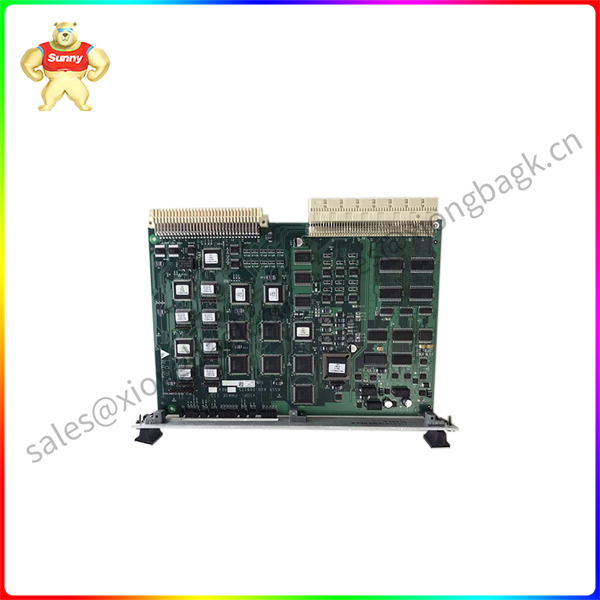

810-099175-011 LAM Interface board module

810-099175-011 Types of motherboard are very many, there are nearly 100 kinds, but the composition of the motherboard is basically the same. Motherboard contains CPU, memory, chipset, BIOS, cache and other components, they quickly determine the performance and type of the motherboard, but also determine the performance of the computer.

Generally 810-099175-011 motherboard mainly includes the following parts:
1 CPU socket: socket for installing a CPU.
2 Bus expansion slot: used to expand the functions of the computer slot, usually used to insert video card, sound card, network adapter, etc.
3 Memory slot: slot for installing memory.
4 Chipset: An important chip that helps the CPU perform various functions.
5 BIOS chip: The basic input/output system of the computer, which records the most basic information of the computer.
6 Hard and soft disk interface: mainly IDE interface, and FDD interface, CD-ROM interface and hard disk interface is the same.
7 Peripheral interface: mainly includes input/output outlet, USB port, parallel port, serial port, PS/2 port.
8 Power port: Supplies power to the mainboard.
9 CMOS battery: Used to power the BIOS chip so that information in the base is not lost.
10 Control indicator port: Used to connect indicators and switches on the front panel of the chassis.

810-099175-011CPU socket: is the most prominent socket on the motherboard, its color is generally white, covered with a “pinhole” or “contact”, and there is a pull rod on the side, corresponding to the interface way of the CPU.
