Description

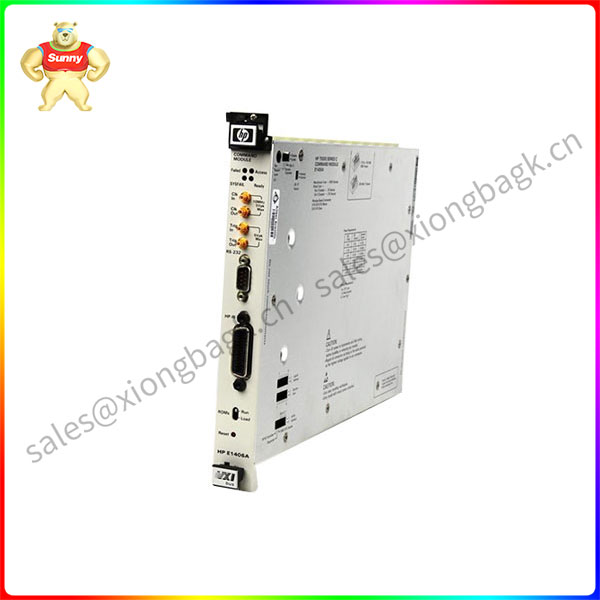

The Keysight Technologies E1406A Command Module is a C-size, 1-slot VXI message-based
commander that provides Slot 0 and Resource Manager functions. It can act as a VMEbus system
controller and GPIB (IEEE-488)-to-VXIbus interface device for transparently communicating with any
manufacturer’s message-based VXI modules. The E1406A Command Module has FLASH memory for
downloadable drivers, so you can program Keysight register-based devices using the high-level SCPI
programming language. It also translates SCPI commands for register-based instruments and therefore,
makes these VXI devices as easy to program as message-based instruments.
This command module also includes a MXIbus Resource Manager for VXIbus extensions. This allows
you to maintain high-throughput performance in multiple mainframe systems. With its flexible triggering
and clock interfacing, you can synchronize the VXI backplane 10 MHz clock to an external TTL signal.
E1406A
OVERVIEW
MANUALS
SPECIFICATIONS
VIEW LIVE
Features:
Message-Based Commander
MXIbus Protocol Support
GPIB, RS-232, Slot 0, and Resource Manager
Onboard RAM and Flash Memory
The Keysight / Agilent E1406A Command Module provides Slot 0 and resource management through VXI message-based commands. It can seamlessly communicate with any manufacturers message-based VXI module through it’s VMEbus system controller and GPIB (IEEE-488)-to-VXIbus interface. Downloadable drivers can be through the FLASH memory allowing users the ability to program devices using the high-level SCPI programming language.
The E1406A offers the ability to maintain high-throughput performance in multiple mainframe systems by including a MXIbus Resource Manager for VXIbus extensions as part of the command module. Synchronizing VXI backplane 10 MHz clock to an external TTL signal is handled through the E1406A’s flexible triggering and clock interface.
