Description
Technical Specifications EMC400-EPWS
Power four media converters through redundant terminal board power input
Ability to hot-swappable the selected EtherWAN media converter

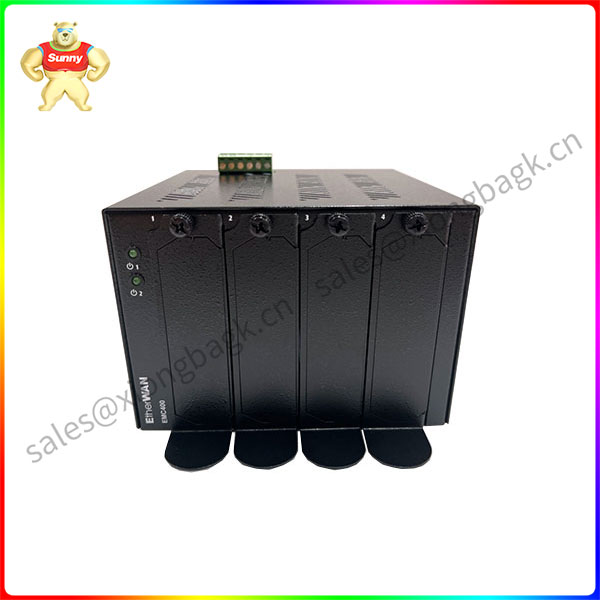

The EMC 400 4-slot Din rail mounting chassis brings flexibility, reliability, and redundancy to mission-critical network infrastructure. Its flexible design allows a variety of EtherWAN media converters and Ethernet extenders to be combined into a single case, providing users with a solution tailored to each network installation needs. The EMC400 features a dual power input design that allows for two independent power supplies to improve reliability and credibility, eliminating a single point of failure for a single power supply.
With its hot-swapable design, the EMC400 allows existing communications to be maintained without interruption during a simple installation of EtherWAN media converters and Ethernet extenders. In addition, the EMC400 incorporates electrical isolation with fuse overcurrent protection between the devices in its case. With its rugged metal housing, DIN rail mounting design, and hot swap technology, the EMC400 is the ideal solution for reliably interconnecting separated network media and pushing Ethernet beyond its boundaries.
power
input
Power input :90-264 volts AC
EMC400 chassis input :12v DC
wiring
Minimum cable AWG: 16AWG
Consumption of power
The largest. 19W @ full installation, depending on the installed equipment
To protect the
Over current protection
Mechanical and mechanical
Set of
Electrogalvanized cold rolled coil (SECC)
The size of the
130 x 164 x 92.1mm mm (W x D x H)
(5.12 inches x 6.46 inches x 3.63 inches)
The weight of the
1.37 kg (3.02 lb)
device
DIN guide rail
The connection
LED indicator light
Power supply 1: On. Power input 1 is connected
Off, power input 1 disconnect
Power supply 2: On. Power input 2 is connected
Off, power input 2 disconnect
The environment
Operating temperature
-20 to 60 degrees Celsius (-4 to 140 degrees Fahrenheit)
Temperature of storage
-20 to 70 degrees Celsius (-4 to 158 degrees Fahrenheit)
Ambient relative humidity
5% to 95%(non-condensing)
Regulatory approval
International Organization for Standardization
Manufactured at ISO 9001 plant
security
UL 60950-1
The answer is Electro-Magnetic Interference. The answer is Electrical Music Industry. The answer is Electrical And Musical Industries.Ltd
FCC Section 15B, Class A
EN 61000-6-4
EN 55022
Speedpost
EN 61000-6-2
EN 61000-4-2 (ESD standard)
EN 61000-4-3(Radiation RFI standard)
EN 61000-4-4(Burst standard)
EN 61000-4-5(Standard for Surge)
EN 61000-4-6(Inductive RFI standard)
EN 61000-4-8(Magnetic field standard)
Environmental test compliance
IEC 60068-2-6 Fc(Vibration)
IEC 60068-2-27 Ea(Shock)
IEC 60068-2-32· Ed (Free Fall)
