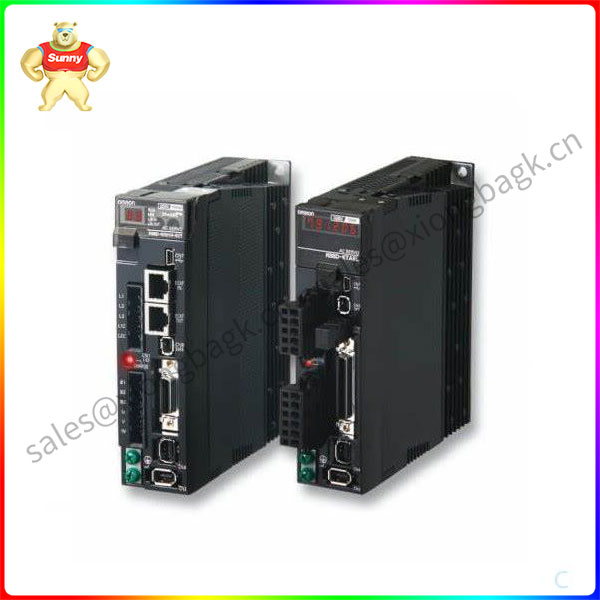

R88D-KN15F-ECT Omron G5 series servo driver

Description

R88D-KN15F-ECT Omron G5 series servo driver

*1. Because the amplitude will increase according to the mechanical resonance, it can not exceed 80% of the specification value for a long time.
*2. The 1500r/min motor (7.5kW ~ 15kW) and 1000r/min motor (4.5kW ~ 6kW) are 24.5m/s2.
*3. UL 1004-6 is only suitable for 7.5 ~ 15kW 1,500r/min motors and 4.5 ~ 6kW 1,000r/min motors.
Note 1. Do not use the cable in an environment contaminated with water and oil.
2. Do not apply pressure caused by twists and turns or its own weight to the cable ends and wiring parts.
3. Before testing the insulation resistance of the servo driver, be sure to disconnect all connections of the servo motor. Insulation resistance testing when the servo motor is connected may cause damage to the servo motor. Do not test dielectric strength on the servo motor. Otherwise it may cause damage to the internal components.
4. In order to meet EMC instructions, wiring and installation precautions in the G5 series instruction manual must be followed.

*1. Value at room temperature (20°C, 65%) when combined with the driver. The instantaneous maximum torque value is the standard value.
*2. Load inertia is applicable
• The operational load inertia ratio (load inertia/moment of inertia) will vary according to the mechanical composition of the operating equipment and its mechanical rigidity. Machines with high rigidity can operate under large load inertia. Please select the corresponding motor and confirm that it can be run.
• Under large load inertia, frequent use of dynamic braking operation may lead to the burning of dynamic brake resistance. Therefore, the servo should not be turned on/off frequently while dynamic braking is used.
• Dynamic braking is limited to emergency stops. The system is designed to ensure that the motor can only start running after 3 minutes of dynamic braking operation, otherwise the brake loop will be powered off.
*3. The allowable radial load and allowable axial load are set values to ensure the service life of 20,000 hours at room temperature. The radial load is allowed to be expressed as the value in the following position.

*4. The brake is non-excited operation type. (Released when an exciting voltage is applied.)
*5. The operation time is put into the surge suppressor (CR50500 (Okaya Electric Industries Co., Ltd.). Manufacturing))) post-measured value (reference value).

This article is from the official website of Zhangzhou Branch of Xiamen Xiongba E-commerce Co., LTD. Please attach this link: http://www.sauldcs.com/
