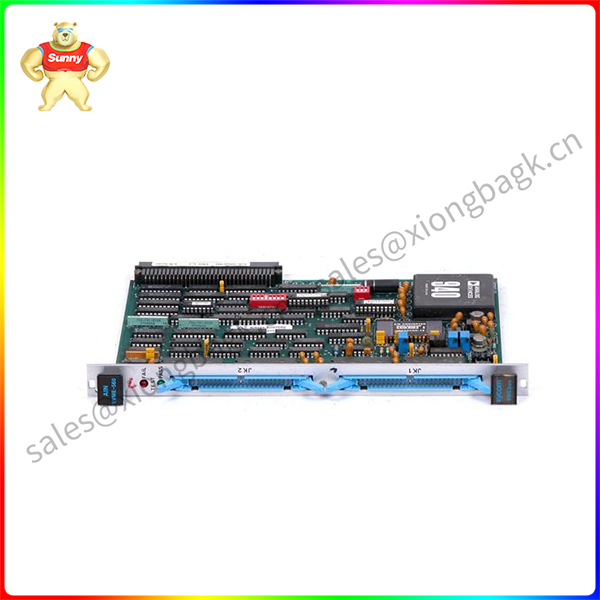

XVME-560  Analog Input Module

The XVME-560 Analog Input Module is a powerful VMEbus-compatible analog input module capable of
performing 12-bit A/D conversions on up to 64 different input channels.
The XVME-560 can be programmed to operate in
one of four operating modes: random channel, sequential channel, single-channel, or external-trigger mode.
After the completion of an A/D conversion, an optional interrupt may be generated.
The XVME-564 can sample unipolar and bipolar inputs, with voltage ranges of 0-5 V, 0-10 V, ±2.5 V,
±5 V, and ±10 V. Programmable gains of 1, 2, 4, or 8 may be software-selected.

XVME-560

Features
• 64 single-ended or 32 differential channels
• 12-bit input resolution
• On-board DC/DC converter
• Jumper-selectable voltage ranges: 0-5 V, 0-10 V, ±2.5 V, ±5 V, and ±10 V
• Software-programmable gain: 1, 2, 4 or 8
• Can interrupt at any of seven VMEbus interrupt levels
Applications
• Slide wires
• Analytical equipment
• Microphones
• RTDs and thermistors
• Temperature transmitters
• Strain gauges and load cells
• Tach generators
