Description
Product details:
ProSoft Technology IEC 61850 Communication Modules allow Rockwell Automation ControlLogix PACs to interface with IEC 61850 Intelligent Electronic Devices (IEDs), such as substation power monitors and protection relays. The module operates as an IEC 61850 client and supports polling of devices using MMS messages and reports. Additionally, support for GOOSE messaging as a publisher and subscriber allows fast data transfer between devices on an IEC 61850 network. Dual Ethernet ports on the module support Parallel Redundancy Protocol (PRP), and the module supports IEEE C37.238-2017 Power Profile for precise time synchronization of field devices.
Features and Benefits
Supports up to 40 IEC 61850 server devices on the network.
Supports MMS, MMS reporting, GOOSE publisher, GOOSE subscriber and control functions on IEC 61850 networks.

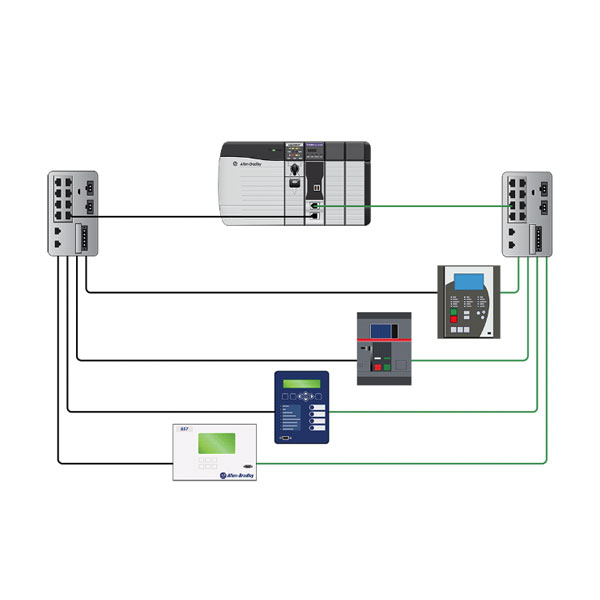

Parallel Redundancy Protocol (PRP) supports Ethernet redundancy for compatible devices.
Time synchronization based on Precision Time Protocol (PTP) support compliant with C37.238-2017 (supports normal and boundary clock modes).
The included configuration software enables you to import all relevant IED tags into the Logix controller tag database, reducing configuration time and errors.
Up to 225 I/Os are connected to the ControlLogix processor, providing large amounts of data to transfer in a real-time environment.
Standards-based device type identification simplifies implementation and maintenance.
Recommended model:
MVI46-MNETC module
MVI46-ADM PROSOFT PLC
ES22/E20zd PLC
BT21LE/S PLC
984333002 PROSOFT PLC
MV1I46-MNETC PLC PROSOFT
Development of MV146-MNET PROSOFT PLC Technology
MVI46-DFNT PLC
MVI71-ADM PROSOFTPLC
MVI94-DFCM PLC PROSOFT
MVI94-ADM PLC
Scale of MVIS56-PDPS PLC control system
