MVI56E-MNET PROSOFT Enhanced network interface module

Description

MVI56E-MNET PROSOFT Enhanced network interface module

Can be transported to all parts of the world. (Exclude areas that cannot be transported under special circumstances! )

If necessary, please contact customer service.

[service contact information]

Tel: 18059884797 (WeChat with the same number)
QQ：3095989363
Email: sales@xiongbagk.cn

Address: Unit 2009, Chuangxiang Center, No.1733, Lvling Road, Siming District, Xiamen

① 24-hour email reply (12 hours);

③ For shipment to countries outside Asia, please contact the seller.

Specializing in the world-renowned brand DCS system, robot system, large-scale servo control system and module.

Main brand: Allen Bradley、BentlyNevada、ABB、Emerson Ovation、Honeywell DCS、Rockwell ICS TRICONEX、FOXBORO、Schneider PLC、GE Fanuc、Motorola、HIMA、Prosoft、Woodward、MOOG、

RexrothAnd other imported industrial parts.

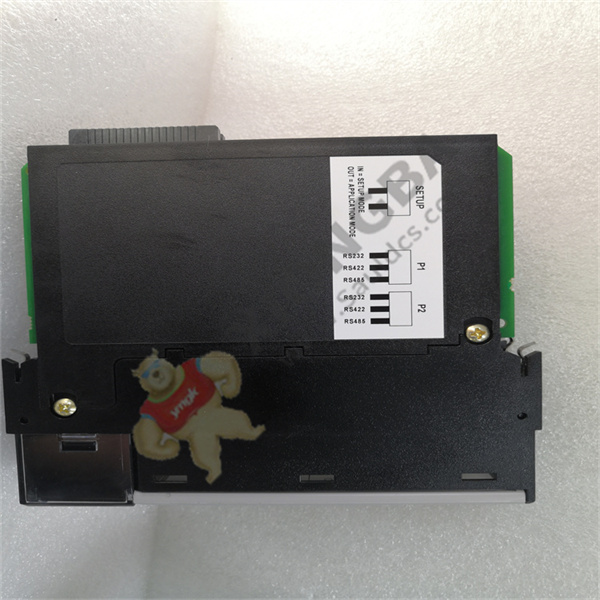

MVI56E-MNET

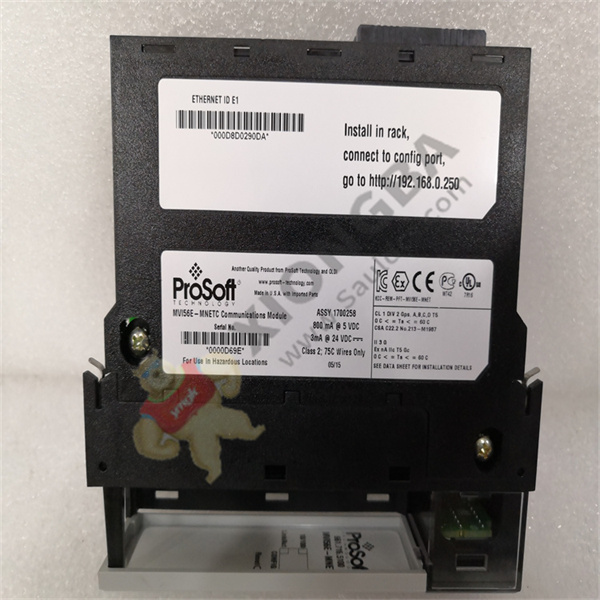

MVI56E-MNET

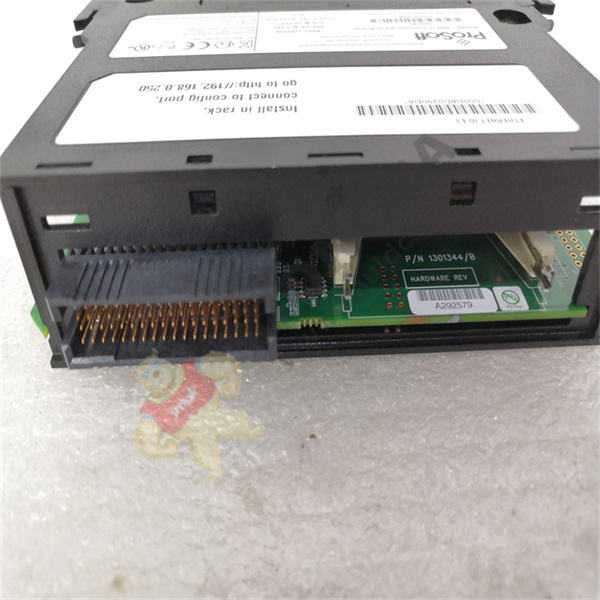

MVI56E-MNET

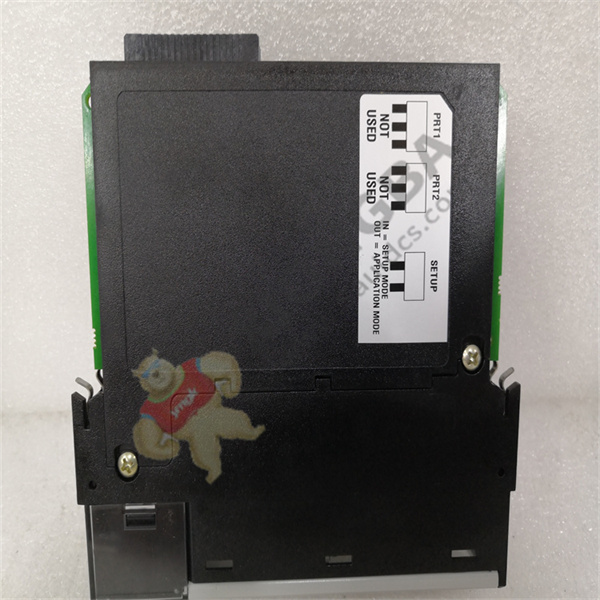

MVI56E-MNET

MVI56E-MNET

The MVI56E-MNET is a Modbus TCP/IP Client/Server Enhanced Network Interface Module that is manufactured by an Allen-Bradley encompass partner company, ProSoft technology. This module enables a ControlLogix system to act as a MODBUS master or MODBUS client over TCP/IP connection. It enable data centralization and provides Human Machine Interface (HMI) systems such as PanelView operator terminals, Supervisory Control and Data Acquisition (SCADA) systems such as FactoryTalk View SCADA, and Distributed Control Systems (DCS) such as PlantPAx, to communicate and integrate the available data that is present to user-definable 5000 Word, 16-bit register module memory.

The MVI56E-MNET is backward compatible with early versions of MVI56E-MNET. This backward compatibility simplifies migration, eliminating the need of changing or revising the existing Relay Ladder logic or the current configuration of the existing, older module. This module has a readily usable Add-On-Profile (AOI) or sample ladder logic that is provided by the manufacturer which can be opened with RSLogix 5000 V16 if used with AOI and RSLogix V15 if used with sample ladder logic. Additionally, this module supports the ProSoft Configuration Builder (PCB) which is a graphical user interface software that provides both offline and online configuration and diagnostics capabilities iver Ethernet I/P network. It supports CIP connect that permits remote configuration and diagnostic access across multiple brinded Ethernet I/P and ControlNet networks via the 1756- ENBT, 1756-EN2T Ethernet communication adapter and 1756-CNB ControlNet bridge module. Additionally, this module supports the ProSoft Discovery Service (PDS) that is used to automatically locate a MVI56E module on the ethernet network and designate a temporary IP address.

The unit comes with 30 g of shock for operation and 50 g when not operating. It also features a vibration of 5 g at 10 to 150 Hertz. The relative humidity for the MVI56E-MNET is 5 to 95%, non-condensing. The MVI56E-MNET comes with a Lithium Vanadium Pentoxide battery that backs up the real-time clock and is also used for backing up the CMOS battery. It is expected that the battery will last for the lifetime of the module and before the battery is fully charged, the module should be connected to power for at least 24 hours. With a fully-charged battery, then the battery will provide a backup power that is enough for the CMOS and the real-time clock for 21 days. The MVI56E-MNET supports an LED scrolling diagnostic display that comes with a 4-character alphanumeric display. The display offers Standard English for the status messages and also for displaying the alarm data and the processor and network communication statuses. The MVI56E-MNET also features a personality module which is an industrial compact flash memory card that stores the complete configuration and the Ethernet settings.

Application industry:

Power plants, steel mills, automobiles, petrochemicals, tobacco, metallurgy

Note: Please follow the instruction manual of this product to install and debug, so as not to damage the product
