MVI69E-MBS Modbus Serial Enhanced Communication Module

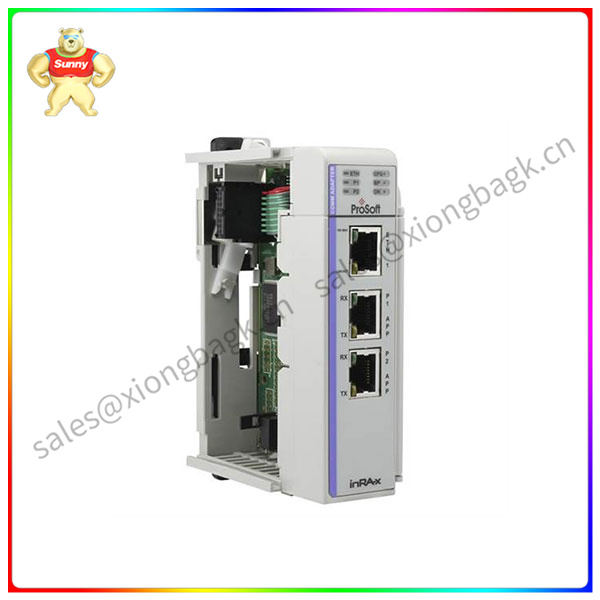

The MVI69E-MBS is a Modbus serial enhanced communication module that can be applied to a compatible CompactLogix platform. This module has been created by ProSoft technology. This module enables connections between the CompactLogix or MicroLogix processors and the Modbus protocol devices. It acts as an input and output communication module between these 2 kinds of devices and it has the ability to store databases full of information. The ProSoft technology MVI69E-MBS Modbus serial enhanced communication module has a power consumption of 500 milliamps at 5 Volts DC. The ProSoft technology MVI69E-MBS Modbus serial enhanced communication module fits in a single slot and once it is installed it is recognized as an input and output module, and this gives it access to the processor memory.

The ProSoft technology MVI69E-MBS Modbus serial enhanced communication module can operate at a specific temperature range of 0 to 60 degrees Celsius and a relative humidity range of 5 to 95% without condensation. This module provides LED indicators for 4 options such as the “module OK” status, backplane activity, Ethernet port activity, and the configuration activity. The packaging of the ProSoft technology MVI69E-MBS Modbus serial enhanced communication module includes the module itself, a male adapter cable (RJ45 to DB9), a screw terminal adapter (DB9 female to 9-pin screw terminal), and an Ethernet cable.

MVI69E-GSC

The MVI69E-MBS is a Modbus serial enhanced communication module manufactured by ProSoft Technology for industrial automation and control system applications. Here are some of the key features and application scenarios of the module:

Multi-protocol support: MVI69E-MBS supports a variety of serial communication protocols, including Modbus RTU, Modbus ASCII, DF1, ASCII, etc., enabling it to communicate with many different types of devices to meet the diverse needs of industrial automation systems.

Compatibility: This module is particularly suitable for compatible CompactLogix™ platforms, enabling connectivity between CompactLogix or MicroLogix processors and Modbus protocol devices.

Configuration flexibility: The module configuration is flexible, users can customize according to actual needs, and its stable and reliable performance ensures the accuracy and real-time data communication.

Additional configuration files and instructions: The MVI69E-MBS comes with additional configuration files and additional instructions, which greatly reduces debugging time and improves work efficiency.

Data Presentation and Control: This module presents data in a meaningful context, helping engineers more effectively analyze process trends and adjust control software.

Application in SCADA system: MVI69E-MBS is suitable for SCADA system and can be used as Modbus master or slave station equipment to achieve integration with SCADA system for data acquisition and monitoring.

Industrial field equipment interface: suitable for interface applications with various Modbus field equipment such as sensors, actuators, frequency converters, temperature controllers, etc.

Supported functional codes: MVI69E-MBS supports a variety of Modbus functional codes, including reading coil status, reading hold registers, writing to a single coil, writing to multiple coils, etc.

Communication parameter setting: Support the setting of communication parameters, such as baud rate from 110 to 115K, stop bit 1 or 2, data size 7 or 8 bits, and none, even, odd check, etc.
