805405-1R | RELIANCE | single-phase field power module

805405-1R | RELIANCE | single-phase field power module

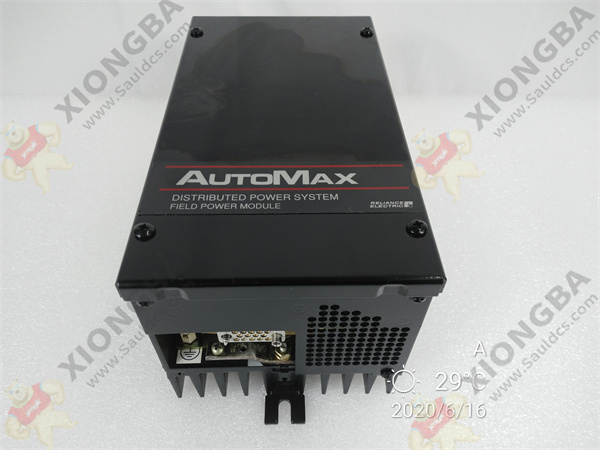

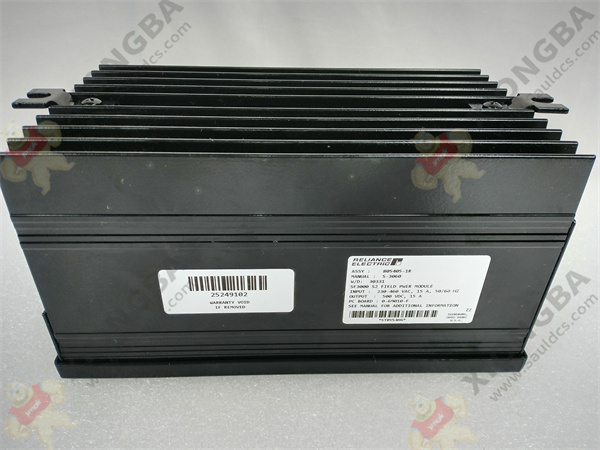

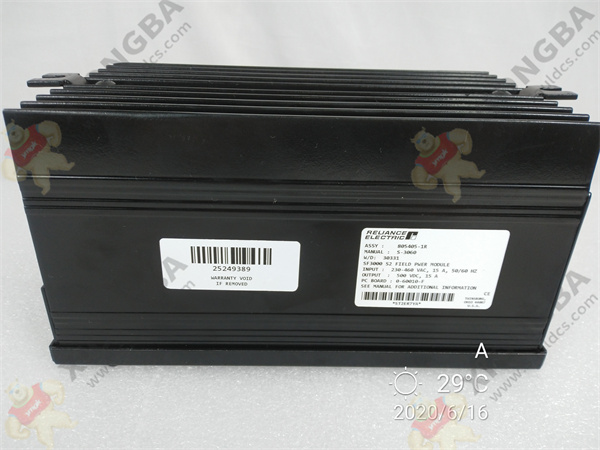

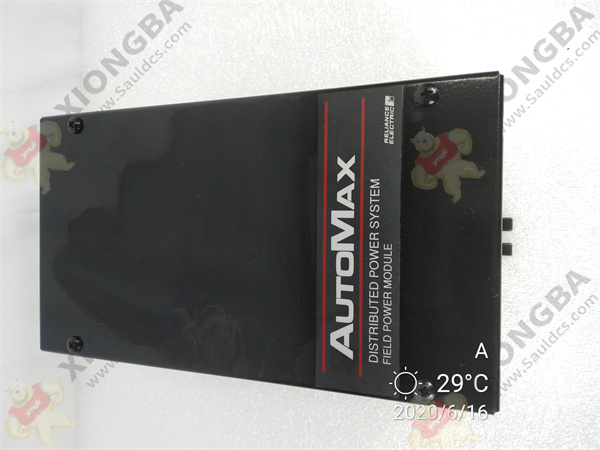

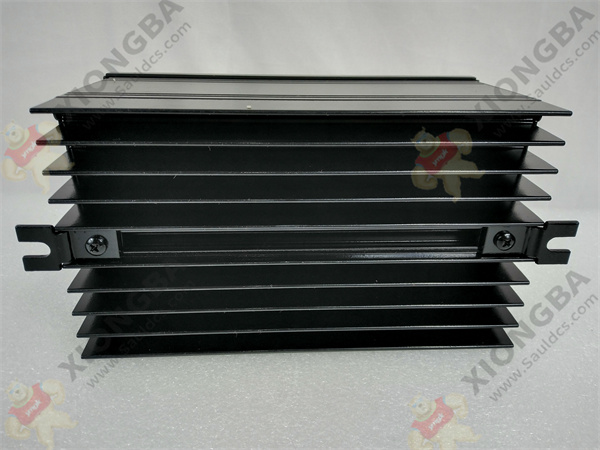

The Reliance Electric AutoMax 805405-1R functions as a single-phase field power module unit with an output of 15 amps, and AC input of 120 to 460 VAC with a non-reversing (S2) bridge type.

The 805405-1 unit is an SF3000 Panel-Mounted Single-Phase Field Power Module that was made by Reliance Electric.

Category: Tags:

Description

Contact: Sunny  |  Email: sales@xiongbagk.cn (☜chick)

 Skype: sales@xiongbagk.cn  |  Phone: 86-18059884797(WhatsApp)

New Web : ▶▶ www.sauldcs.com  ◀◀

805405-1R

805405-1R

805405-1R

805405-1R

Frequently Asked Questions about 805405-1
What manual is used with 805405-1?
The manual used with 805405-1 is Manual S-3060. The manual for 805405-1 is the Distributed Power System SF3000 Panel-Mounted Single-Phase Field Power Modules Manual. The manual is a Reliance manual and the manual highlights 805405-1 as well as 805405-3R and 805405-5R.
What is the voltage on 805405-1?
805405-1 has a voltage between 120 and 460 VAC.
What bridge type is 805405-1?
805405-1 has a non-reversing (S2) bridge type.
What is the maximum AC input current on 805405-1?
805405-1 has a maximum AC input current of 15.5 amps. 805405-1 has a rated DC output current of 15 amps.
Product Description
The 805405-1 unit is an SF3000 Panel-Mounted Single-Phase Field Power Module that was made by Reliance Electric.

The 805405-1 Field Power module is designed to bring the DC motors within the AutoMax series the means for adjustable-voltage, current-regulated field excitation processes. To do this, the 805405-1 Field Power module is used along with a three-phase Armature Power module that are both connected to the same PMI rack. The 805405-1 Field Power module’s SCR power bridge is designed to be operated using the AutoMax Programming Executive software.

The 805405-1 Field Power module has a power rating of 15 Output Amps and an AC Input Voltage range of 120 to 460 VAC with a non-reversing bridge type. In addition to that, the 805405-1 Field Power module has an electrically isolated power cube, which has its own dv/dt protection, and internal AC line fuses. There is also a self-firing clamp which is used for providing protection against the event of an inductive voltage kick that results from current interruption. The 805405-1 Field Power module’s rectifier consists of a total of four SCRs, all of which are configured for used in a full-wave bridge. An isolation transformer is an optional component component for this module.
