Description
Technical Specifications 140AVI03000

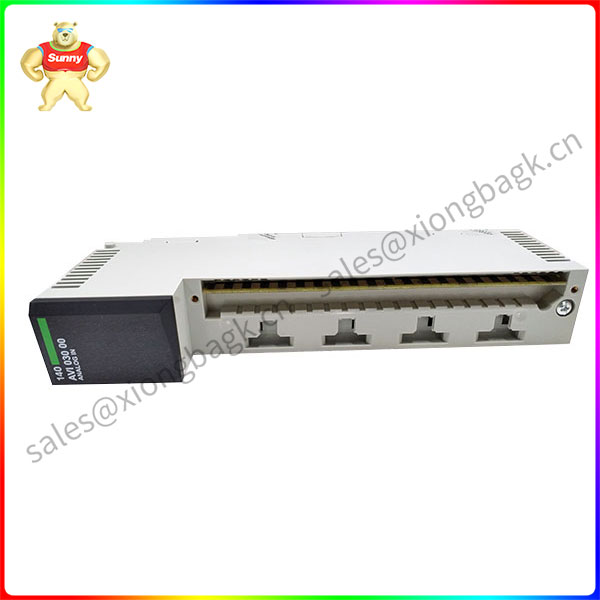

140AVI03000 is an analog hybrid current/voltage input module that is part of the Mordecon Quantum series. This analog 8-channel bipolar module accepts a mix of current and voltage inputs. A jumper is required between the input end of the current input and the detection end. 140-AVI-030-00 contains a total of 18 indicators. The “active” LED remains lit and green when bus communication is present. The “F” indicator will light red when an error outside the module is detected. When the indicated point or channel is opened, the green LEDs 1 to 8 will open. The red leds from 1 to 8 light up for two reasons. Indicated channels are out of range (1-5 volts), or a broken line is detected (4-20 mA).
Characteristics of the
The Schneider Electric 140AVI03000 allows for a variety of different features, including a hot standby system with unity pro where storage space is reserved for applications. You can configure this using the information provided by the dedicated dialog box, which you can fill in when configuring the system. The front panel is a mini terminal with an LCD screen and navigation buttons. The 140AVI03000 also includes a system register. Internal register management standby system. It is carried by a system word. unity pro programming Settings provide standard feature blocks. What’s in it for you? It allows you to read/write the command register as well as read the status register.
advantage
With 140AVI03000, you get a circular transfer of the application context. You can monitor program differences and ensure parity of PLC memory contents. It is possible to upgrade the operating system. Automatic exchange of communication port addresses exists. During the communication, the mechanism is automatically switched. I/O module 140AVI03000 supports the CCOTF function.
How to use 140AVI03000
To prevent incorrect fault indications, unused inputs should be combined with +(positive) and -(negative) inputs and configured with a bipolar input range. Wireless input will cause invalid readings. When configured with a voltage input (no jumpers are installed between the input (+) and ISENSE terminals), disconnected field wires can result in non-zero and unpredictable readings. When the module is running, do not remove the field terminal.
For external wiring, the user shall provide current and voltage sources, and fuse installation and calibration are at the user’s discretion. Shielded cables are recommended. Stranded shielded cables are recommended in a noisy environment. The shielded cable shall be connected to the ground of PLC. Shielding cables should be grounded using shielding rods. If you are on-site wiring 140AVI03000, the maximum wire size is 1-14 AWG or 2-16 AWG and the minimum wire size is 20 AWG.
Product Description
140AVI03000 is an analog input module Modicon Quantum-8 I Multiran… It’s made by Schneider Electric.
