Description
Product details:
Product number :3664

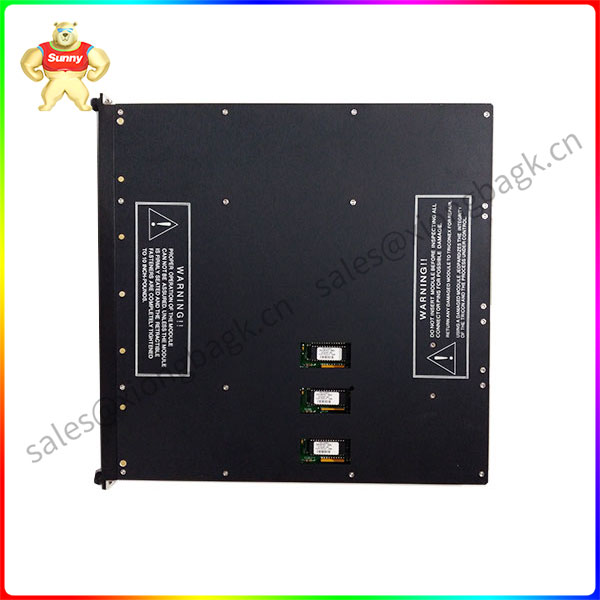

Product type: Digital output module
Nominal voltage :24 volts DC
Output signal :32, normal
Voltage range :16-30 volts DC
Maximum voltage :36 volts DC
Voltage drop :%3C 1.5 VDC, typical value
Power module: Load %3C 10 W
Maximum current rating: 2A per point, 10 amps surge every 10 ms
Load leakage: Maximum 2 mA
Point isolation: Minimum 1500 VDC
Color code: dark blue
Application of inductor based on magnetic field
It generates a magnetic field by applying a current to an inductor coil, which is used in a wide range
of engineering applications, such as contactors, electromagnetic relays, and maglev trains.
For example, electromagnetic relay is based on the working principle that inductive coil is
energized to generate a magnetic field. As shown in Figure 1-6 below, when the switch is closed, the
coil flowing through the current generates a magnetic field, and the iron core is magnetized, thus attracting the
contact and making the contact close. When the switch is off, the current of the inductor coil will also be zero, the
magnetic field will disappear, and the contact will pop open under the force of the spring, making the contact open.
A simple contactor can be formed by adding an arc extinguishing device on the basis of the relay principle, as shown
in Figure 1-7 below. The working principle of contactor is also relatively simple. When the coil is energized, the coil
draws the main contact, so that the main loop is connected. On the contrary, the coil loses power and the loop is disconnected.
The working principle of maglev train also involves inductance coil, its specific process will not be elaborated here.
The role of inductors, in addition to generating magnetic fields, there are other applications, such as generating high
voltage, limiting short circuit current, anti-interference, power transmission, etc., these applications are also based on the
component characteristics of inductors, but not only the field generation side.
