Description

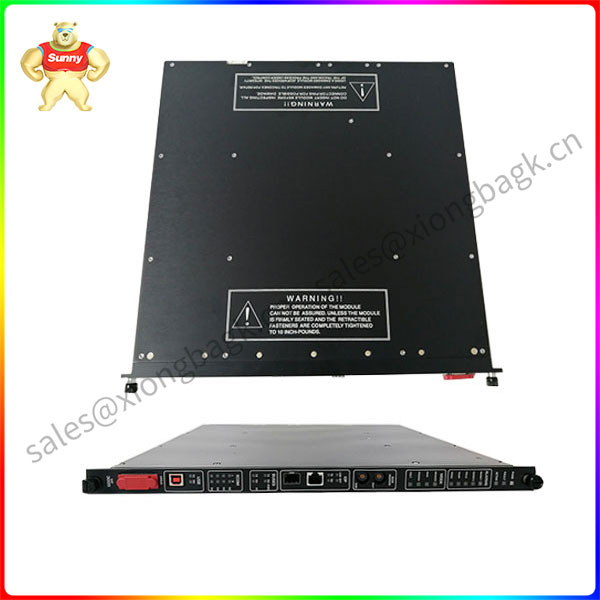

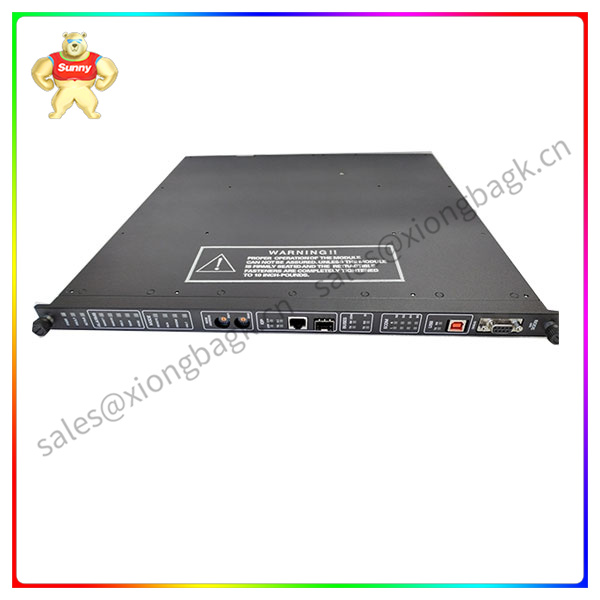

Triconex Tricon Control System Introduction:
Key features of the Tricon control system
Tricon is a highly fault-tolerant programmable and process control technology
Its characteristics are as follows:
A, to provide a two-mode multi-component structure TMR, with three identical
sub-circuits, each sub-circuit to perform independent degree of control. There is
also a dedicated hard/sexual architecture for “” tabulating” “inputs and outputs
Able to endure harsh industrial environments.
C. It can be installed in the field and can be installed and repaired online in the field
without interfering with the field wiring module level, D. Up to 118 I/O modules (analog and digital)
and optional communication modules are supported. Communication modules can be connected to
Modbus hosts and slave devices, or to Foxboro and Honewwel Distributed Control Systems (DCS), other
Trcons in peer-to-peer networks, and external masters in TCP/P networks
.
E. Can support remote I/O modules up to 12 km from the mainframe
F. Develop and debug control programs using programming software based on Windows NT
systems. G. Intelligent functions in the input and output modules reduce the workload of the main
processor. Each /0 module has three microprocessors. The microprocessor of the input module
overchecks and repairs the input, and diagnoses the hardware noise on the module. The microprocessor
of the output module provides information for the voting of the output data, checks the validity of the output
state through the feedback loop voltage of the output, and can diagnose the field line problem H. Provides
comprehensive online diagnostic and repair capabilities.
When Tricon is up and running, routine maintenance can be performed without interrupting the control process.
J. Provide “hot backup” support for I/O modules, which can be used in certain emergency situations where service
cannot be provided in time.
