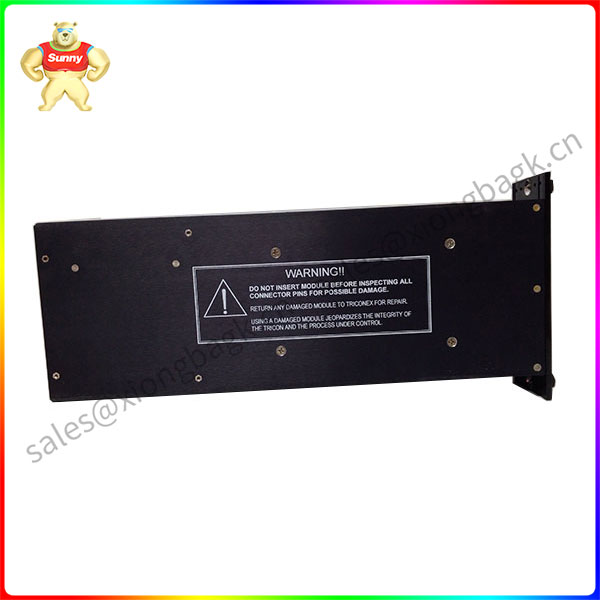

TRICONEX 8310 120 Main/Expansion/RXM 120 VAC/VDC Power Modules

Power Module Specifications
Isolation >1,000 VAC or 1,500 VDC, Input to Output
Input Terminations Protected by safety cover
Accepts three 12-gauge wires (3.310mm2): neutral, hot, and
protective earth (chassis ground)
Over-Temp. Sensor Temperature warning monitor—trips when internal temp. is
greater than 181° F (83°C); this typically occurs at ambient
temperature 140°F (60°C) or higher
Alarm Contacts Normally open, normally closed and common
Each contact supports 120 VAC @ 1 amp
Accepts 12-gauge (3.310mm2) wire
Protected by safety cover
Input Power Required 240 watts minimum per Power Module
Output Power 175 watts at 140°F (60°C)
Output Voltage 6.5 VDC, ±1% under all operating conditions
Output Current 27 amps maximum at 140°F (60°C) ambient
