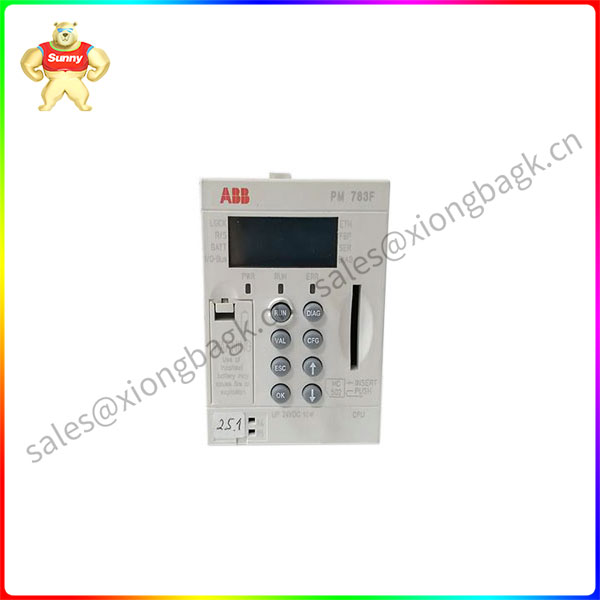

PM783F 3BDH000364R0002 CPU module ABB

Product number :3BDH000364R0002
ABB Model name :PM 783F
Directory description :PM 783F CPU module
The central Processing unit (CPU) module is equipped with a high performance processor to achieve fast cycle time. It comes with an onboard 100 Mbit/s Ethernet connection for communication between controllers, operator stations and engineering tools. The two serial line interfaces complete the connection. One interface can be used for Modbus communication and the other for diagnostics. The CPU has 10 MB of memory, of which 2 MB is the spare battery. For demanding applications, eight cycle time adjustable cycle and priority driven tasks can be configured, as well as a cycle PLC-type task to run as fast as possible. A small front panel display displays status and diagnostic information directly on the module. In addition, you can lock the controller by pressing a button. This means that the controller can be prevented from downloading applications and firmware for increased security. If the controller is locked or unlocked, the status is displayed on the display. The S700 I/O module can be plugged directly into the CPU module or used for remote I/O via PROFIBUS. A controller can connect to a maximum of eight modules. Third-party I/ OS can be connected through MODBUS ASCII/RTU, IEC 60870-5-101 remote control protocol, or PROFIBUS. The communication speed between the CPU and the local S700 I/O module is very fast. An I/O scan time of 2 milliseconds is possible. Each channel has realized the detection of short circuit and broken line.
Medium description :PM 783F is a DCS running on PLC hardware, especially suitable for use from a few to about a few. 300 input/output signals. It doesn’t have an operating system. During software installation, you must load the operating system. External 24 volts DC power supply is required.
Customs tariff number :85389091
Net weight: 0.15kg

Add to quote
Category:

Description

About PM783F 3BDH000364R0002

Product number :3BDH000364R0002
ABB Model name :PM 783F
Directory description :PM 783F CPU module
The central Processing unit (CPU) module is equipped with a high performance processor to achieve fast cycle time. It comes with an onboard 100 Mbit/s Ethernet connection for communication between controllers, operator stations and engineering tools. The two serial line interfaces complete the connection. One interface can be used for Modbus communication and the other for diagnostics. The CPU has 10 MB of memory, of which 2 MB is the spare battery. For demanding applications, eight cycle time adjustable cycle and priority driven tasks can be configured, as well as a cycle PLC-type task to run as fast as possible. A small front panel display displays status and diagnostic information directly on the module. In addition, you can lock the controller by pressing a button. This means that the controller can be prevented from downloading applications and firmware for increased security. If the controller is locked or unlocked, the status is displayed on the display. The S700 I/O module can be plugged directly into the CPU module or used for remote I/O via PROFIBUS. A controller can connect to a maximum of eight modules. Third-party I/ OS can be connected through MODBUS ASCII/RTU, IEC 60870-5-101 remote control protocol, or PROFIBUS. The communication speed between the CPU and the local S700 I/O module is very fast. An I/O scan time of 2 milliseconds is possible. Each channel has realized the detection of short circuit and broken line.
Medium description :PM 783F is a DCS running on PLC hardware, especially suitable for use from a few to about a few. 300 input/output signals. It doesn’t have an operating system. During software installation, you must load the operating system. External 24 volts DC power supply is required.
Customs tariff number :85389091
Net weight: 0.15kg

PM783F

Technical Specifications for PM783F 3BDH000364R0002

Manufacturer ABB Condition 100% New Original
Brand ABB Long Term Drift < 0.3%
Part Number PM783F 3BDH000364R0002 Frequency Range 24 to 68kHz
Product Name CPU module Input Voltage Range 0 to 55 VDC
Product situation Out of production Operation Temperature -20 to 160°C
Product Package Original Package Shipping term TNT DHL FEDEX EMS UPS



*** Pay ***
Shipping: UPS, DHL, Fedex, TNT or China Post EMS or Aramex
Payment terms: ALIBABA hosting.
If you have other preferential payments, please contact us
*** Transportation **
1. Usually, products will be shipped within 7 days of receiving your payment.
2. Products can be shipped by UPS/DHL/TNT/Fedex/EMS according to your needs.
3. We are not responsible for any delay, accident or other problems caused by the forwarder.
4. Any import charges or expenses shall be borne by the Buyer.
