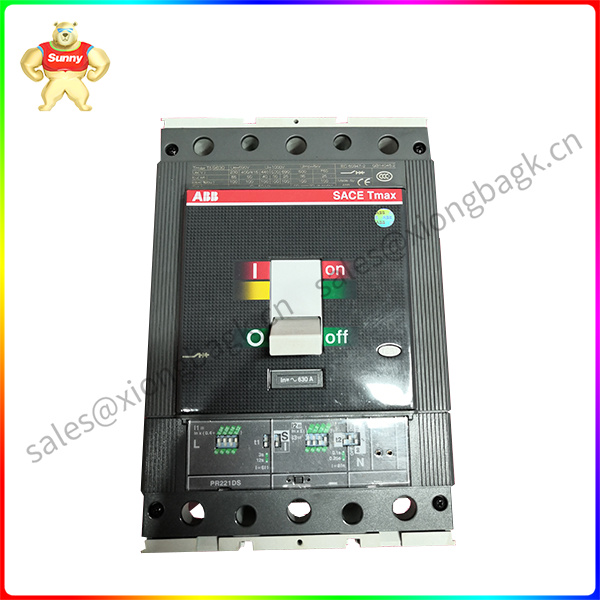

T5S630-PR221DS-LSI-R630F-F-3P ABB BREAKER

Description

T5S630-PR221DS-LSI-R630F-F-3P ABB BREAKER

Extended Product Type:T5S 630 PR221DS-LS/I In=630 3p F F Product ID:1SDA054404R1 EAN:8015644555023 Catalog Description:T5S 630 PR221DS-LS/I In=630 3p F F Long Description:C.BREAKER TMAX T5S 630 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR221DS-LS/I R 630 Categories Products » Low Voltage Products and Systems » Circuit Breakers » Moulded Case Circuit Breakers » Tmax T Ordering E-Number (Finland):3655326 E-Number (Sweden):3180384 EAN:8015644555023 Minimum Order Quantity:1 piece Customs Tariff Number:85362090 Dimensions Product Net Width:140 mm Product Net Height:205 mm Product Net Depth / Length:103.5 mm Product Net Weight:4.875 kg Container Information Package Level 1 Units:1 piece Package Level 1 Width:248 mm Package Level 1 Height:240 mm Package Level 1 Depth / Length:285 mm Package Level 1 Gross Weight:5.1 kg Package Level 1 EAN:8015644555023 Environmental RoHS Status:Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 Additional Information Electrical Durability:5000 cycle 60 cycles per hour Mechanical Durability:20000 cycle 120 cycles per hour Number of Poles:3 Power Loss:at Rated Operating Conditions per Pole 41 W Product Main Type:SACE Tmax T Product Name:Moulded Case Circuit Breaker Product Type:CB Rated Current (In):Main Circuit 630 A Rated Impulse Withstand Voltage (Uimp):8 kV Rated Insulation Voltage (Ui):1000 V Rated Operational Voltage:690 V AC Rated Service Short-Circuit Breaking Capacity (Ics):(220 V AC) 85 kA (230 V AC) 85 kA (380 V AC) 50 kA (400 V AC) 50 kA (415 V AC) 50 kA (440 V AC) 40 kA (500 V AC) 30 kA (690 V AC) 25 kA Rated Ultimate Short-Circuit Breaking Capacity (Icu):(220 V AC) 85 kA (230 V AC) 85 kA (380 V AC) 50 kA (400 V AC) 50 kA (415 V AC) 50 kA (440 V AC) 40 kA (500 V AC) 30 kA (690 V AC) 25 kA Rated Uninterrupted Current (Iu):630 A Release:PR221DS-LS/I Release Type:EL RoHS Date:NA Short-Circuit Performance Level:S Standards:IEC Sub-type:T5 Suitable For:T5 Suitable for Product Class:Moulded Case Circuit Breakers Terminal Connection Type:Fixed Circuit-Breakers Front Test Voltage Max (Utest):3500 V Test Voltage at Industrial Frequency for 1 Minute:3500 V Version:F Certificates and Declarations (Document Number) Data Sheet, Technical Information:1SDC210004D0203 Declaration of Conformity – CE:9AKK106713A5539 Environmental Information:9AKK10103A1056 GL Certificate:1SDL000163R0062 Instructions and Manuals:1SDH000437R0001 Instructions and Manuals (Part 2):ITSCE-RH0100001 REACH Declaration:9AKK108466A1425 RoHS Information:9AKK108466A1424 Classifications ETIM 4:EC000228 – Power circuit-breaker for trafo/generator/installation prot. ETIM 5:EC000228 – Power circuit-breaker for trafo/generator/installation prot. ETIM 6:EC000228 – Power circuit-breaker for trafo/generator/installation prot. ETIM 7:EC000228 – Power circuit-breaker for trafo/generator/installation protection ETIM 8:EC000228 – Power circuit-breaker for trafo/generator/installation protection Object Classification Code:Q UNSPSC:39121100 WEEE Category:5. Small Equipment (No External Dimension More Than 50 cm) eClass:V11.1 : 27370409

Please contact Sunny sales@xiongbagk.cn for the best price.
