1769-OB32 discrete output sourcing module

Description

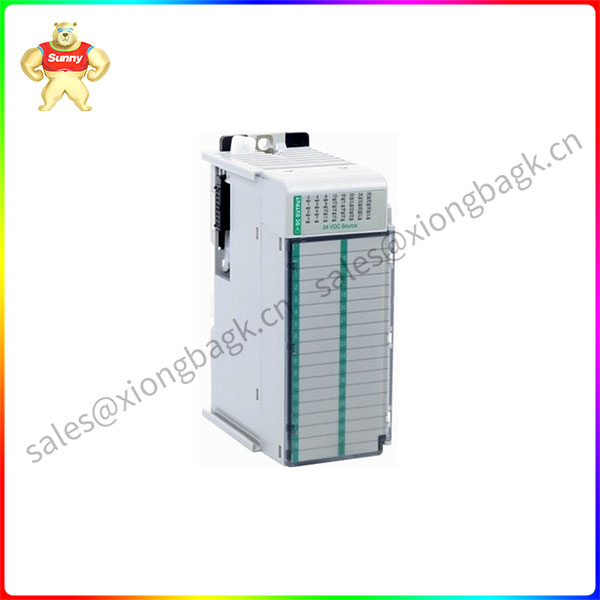

1769-OB32 discrete output sourcing module

The 1769-OB32 belong to the 1769 Compact I/O. This solid-state device is a discrete output sourcing

module that is manufactured by Allen-Bradley for use with CompactLogix Controllers as well as MicroLogix 1500 controllers.

The 1769-OB32 is a high-density module that is equipped with Thirty-Two (32) output channels, isolated

in Two (2) groups of Sixteen (16) channels. This module is practical for use in applications where a large

number of I/Os are existing, with limited panel space. This module occupies 1.5 slot of the CompactLogix

or MicroLogix 1500 chassis to allow maximizing supported module of a specific controller.

The output channel of this module operates at a sourcing input configuration. Individual ON Output delay

of each channel measures 0.1 ms and an OFF output delay of 1.0 ms. Each channel may carry a Current of 0.5 A @ 60 °C (140 °F) and 1.0 A @ 30 °C (86 °F).

1769-OB32

The Allen-Bradley 1769-OB32 is Compact I/O module which is a solid-state 24VDC output module. This

output module has Thirty-Two (32) channels with Two (2) groups of Sixteen (16) channels each. This module

is wired in sourcing configuration to provide. The 1769-OB32 has a 20.4 to 26.4 Volts DC operational

voltage range, and an output delay time of 0.5 milliseconds (on-mode) or 4 milliseconds (off-mode). It has a

3000 mA current draw at 5.1 Volts and a maximum heat dissipation of 4.5 Watts. The 1769-OB32 module

has a maximum off-state leakage current of 1.0 mA at 26.4 Volts and a minimum on-state current of 1.0 mA.
