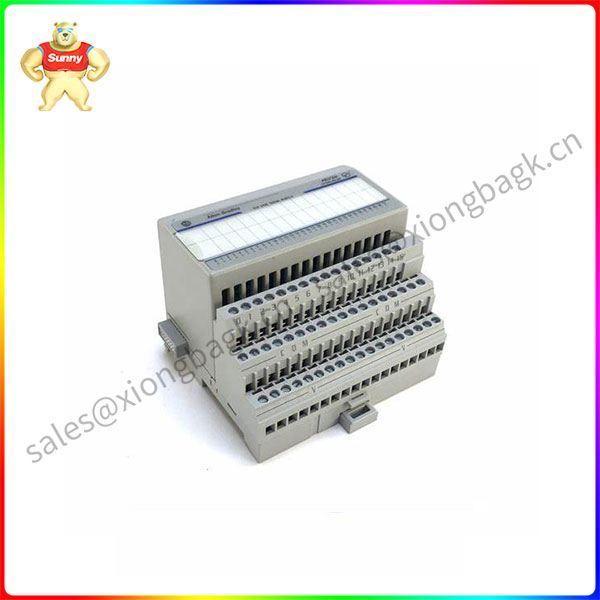

1794-IB32 Flex I/O DC input module

1794-IB32 Flex I/O DC input module

1794-IB32 is an Allen-Bradley module that belongs to the Flex I/O product family of distributed I/O components. The module is an input interface device that allows field instrumentation and electrical equipment such as push button devices, limit switches, proximity sensors, float control switches, process switches, relay contacts and contactor auxiliary contacts to be integrated into any automatic control system or process.

The 1794-IB32 accommodates up to thirty-two (32) DC input devices. It is a 32 channel current absorption module, each channel has a minimum on-off voltage range of 192. The maximum range is 31.2VDC and the nominal signal level is 24VDC.

Add to quote
Category:

Description

[Product description] :1794-IB32 Flex I/O DC input module

Manufacturer :Allen-Bradley

Product model :1794-IB32

Product type:1794-IB32 Flex I/O DC input module

[details] 1794-IB32 Flex I/O DC input module

1794-IB32 is an Allen-Bradley module that belongs to the Flex I/O product family of distributed I/O components. The module is an input interface device that allows field instrumentation and electrical equipment such as push button devices, limit switches, proximity sensors, float control switches, process switches, relay contacts and contactor auxiliary contacts to be integrated into any automatic control system or process.

The 1794-IB32 accommodates up to thirty-two (32) DC input devices. It is a 32 channel current absorption module, each channel has a minimum on-off voltage range of 192. The maximum range is 31.2VDC and the nominal signal level is 24VDC.

The 1794-IB32 is capable of installing Flex I/O communication adapters such as Ethernet, ControlNet, Remote I/O, and others. As long as you follow the Flex I/O installation requirements, there is no limit to the number of installation instances supported by this module.

1794-IB32 is a high density input channel. Each of the 32 channels is equipped with LED indicators to monitor activity in each channel. This helps identify the active channel more quickly and verify that the input device is working properly. These LED indicators are simply powered on when a signal is received and extinguished when the signal is not present.

The module is connected to the Flex I/O terminal base. The terminal base provides input and power terminals and DIN rail mounting slots. Compatible terminal bases for use with this high-density input module are 1794-TB32, 1794-TB32S, 1794-TB62DS, and 1794-TB62EXD4X15. The terminal base also allows the module to be removed and inserted with power on.

The 1794-IB32 is rated at 24 volts DC with switching voltages ranging from a minimum of 19.2 volts DC to a maximum of 31.2 volts DC. Its maximum turn-off state voltage is 5 volts DC and its maximum turn-off state current is 1.5 mA. The 1794-IB32 has a rated on-state current of 4.1 mah at 24 volt DC, ranging from a minimum of 2 mah to a maximum of 6 mah. The FlexBus current of the module is 30 mah at 5 volts DC. Although there is no isolation between the individual channels, the isolation voltage of 1794-IB32 is 50 volts, which is continuous between the system and the field side. It has a maximum heat dissipation of 20.47 BTU/ hour at 31.2 volts DC and a maximum power consumption of 6 watts at 31.2 volts DC. The module operates at a temperature of 0 to 55 degrees Celsius, while its storage temperature is -40 to 85 degrees Celsius. It has an operating vibration of 5 G at 10 to 500 Hz, an operating shock of 30 G, and a non-operating shock of 50 g. The 1794-IB32 also has a relative humidity range of 5% to 95% and does not condense.
