2711P-B6C20D PanelView Plus 6 600 color terminal

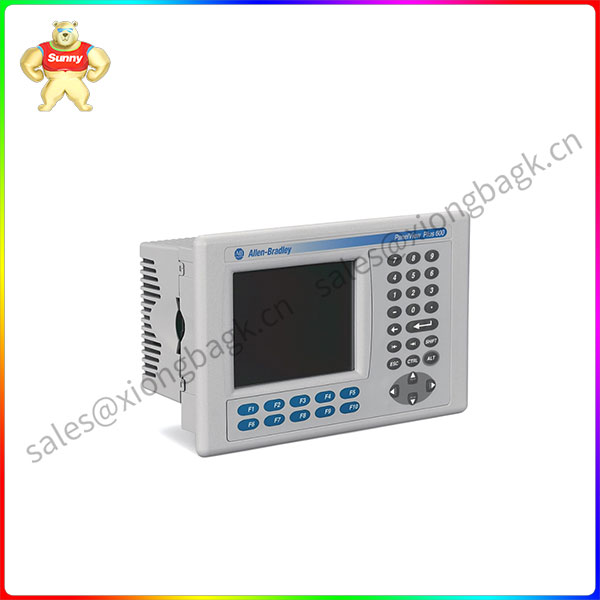

The Allen-Bradley 2711P-B6C20D is a PanelView Plus 6 600 operator terminal. This operator terminal is part

of the modern PanelView products of Allen-Bradley with modern specifications that meets current automation requirements

and connectivity. This operator terminal is compact yet highly configurable and scalable to meet specific control needs. It remains a cost-effective visualization component.

The 2711P-B6C20D is a PanelView Plus 6 600 operator terminal is typically called as Human Machine Interface (HMI)

by most personnel. This HMI mainly features a Color active-matrix Thin Film Transistor (TFT) with screen size of 5.7 inches,

effective viewing area of 115 x 86 mm (4.5 x 3.4 in.) and resolution of 320 x 240, 18-bit color graphics. The screen has a

rated brightness of 440 cd/m2 (Nits) with a non-replaceable backlight having an operational lifespan of 25,000 hours min at 25 °C (77 °F).

2711P-B6C20D

The 2711P-B6C20D also comes with a dual operator input interface. It has a keypad assembly and touch

sensitive cells which enables operational flexibility. The Keypad is composed of Numeric, navigation, and fully-programmable

function keys. The keypad is made of Stainless-steel membrane with actuation life of 1 million presses and recommended

actuation force of 340 g. The touchscreen interface is made of an analog resistive, 4-wire touchscreen with the same actuation lifespan of up to 1 million presses and operating force of 10-110 g.

This operator terminal has One (1) RS232 communication interface that supports DF1 and other point-to-point protocols, Two

(2) USB ports for connection of external peripherals such as mouse, keyboard, removal storage and One (1) Ethernet communication port that supports Ethernet I/P and Common Industrial Protocol (CIP).
