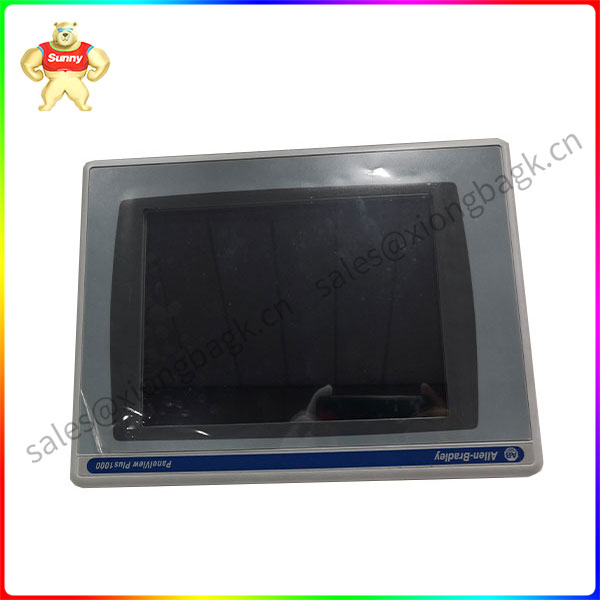

2711P-T10C4A9 Allen-Bradley Panelview Plus 6 1000 Operator terminal

Description

Technical Specifications 2711P-T10C4A9

Allen-Bradley 2711 p-t10c4a 9 panel view Plus 6 Terminal with extended functionality and file viewer. It displays application status information graphically, allowing the operator to control and monitor other machines. The 2711P-T10C4A9 has a flexible configuration process with separate display and logic modules and optional communication modules. Users can enter information and data through the touch screen to control the operator interface. The 2711P-T10C4A9 features a 10.4-inch color display with a resistive touchscreen input option. The touchscreen resolution is 640 x 480 with 18-bit color graphics. It has 512 MB of RAM and 512 MB of non-volatile memory for user storage. It weighs 8 pounds and measures 16 by 14 by 8 inches. It has an input voltage of 100 to 240 volts AC, a frequency of 50 to 60 Hertz, and a maximum power consumption of 160 volt amps. For communication, it has one Ethernet port, one RS-232 port and two USB ports. The 2711P-T10C4A9 also supports optional DH-485, DH+, ControlNet, and Ethernet modules. It comes with a battery-powered real-time clock and supports SD cards for external storage.

The 2711P-T10C4A9 offers significant improvements in processor speed, memory, lighting, and connectivity over the previous PanelView terminal. By using the network and standard Ethernet connections, the Ethernet port connects to the controller on the Ethernet /IP network. This port can handle application transfers as well as printing. The Ethernet /IP screen allows the user to modify some Ethernet /IP communication Settings for the PanelView terminal. If another Ethernet port is required, the 2711P-RN20 Ethernet communication module is available for 700 to 1500 terminals. The module has its own unique IP address. This port has an RJ45 10/100ba se-T connector for network communication, which supports MDI/MDI-X connections.

This is a practical feature that allows the device to display various documents such as manuals, reports, recipes, charts and diagrams to aid the proper operation of the system. These features are added to basic features such as File Transfer Protocol (FTP)%3C VNC client and server connection, PDF file browser and Active X controls. The operator terminal can also be configured in an open or closed system configuration.

The operator terminal has a 10.4-inch display embedded with an 8-wire analog resistive touch screen that can be pressed up to 1 million times with a recommended driving force of 10-110 g. It comes with 512MB flash memory and 512MB random access memory (RAM). It is powered by an external power supply of 100-240 volts AC and 50-60 Hz.
