133819-01 3500/60 Internal terminal of I/O module

None. 133819-01 Functions
The 3500/60&61 temperature monitoring module has six channels and accepts temperature input from

resistance temperature detector (RTD) and thermocouple (TC). These inputs are conditionally compared by the module to user programmable alarm Settings.
The 3500/60 and 3500/61 function exactly the same except that the 3500/61 has recorder output in all six channels

and the 3500/60 does not. Using the 3500 Framework configuration software, users configure modules to perform RTD or TC temperature measurements.
RTD/TC non-isolated and TC-isolated versions of several I/O modules are available. The RTD/TC non-isolated type

can be configured to accept TC or RTD inputs, or a combination of TC and RTD inputs. To protect against external interference, TC Isolation Edition provides 250 Vdc inter-channel isolation.
When used in a three-mode redundancy (TMR) configuration, the temperature monitors must be deployed in groups

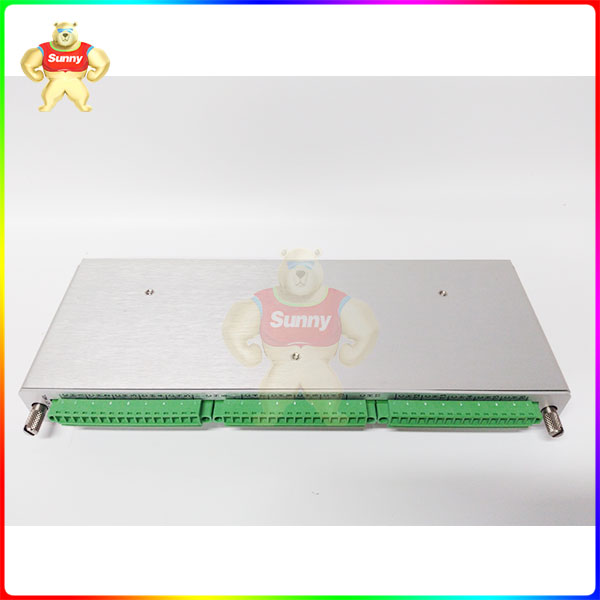

of three. In this setup, the system uses two voting methods to ensure proper operation and avoid a single point of failure.133819-01 is an RTD/TC non-isolated I/O module with internal terminal developed by Bentley Nevada Corporation.

It is part of the 3500/60&/ 61 temperature monitor. The temperature monitoring module accepts temperature input

from a resistance temperature detector (RTD) and a thermocouple (TC) and compares it to a user programmable alarm

set value. Users can configure the RTD/TC non-isolated version to accept TC or RTD input, or a mixture of TC and RTD

input. The TC isolation version provides 250 Vdc channel isolation to prevent external interference. The global industry

standard and the recommended material for all applications is platinum RTD with α value of 0.00385.
