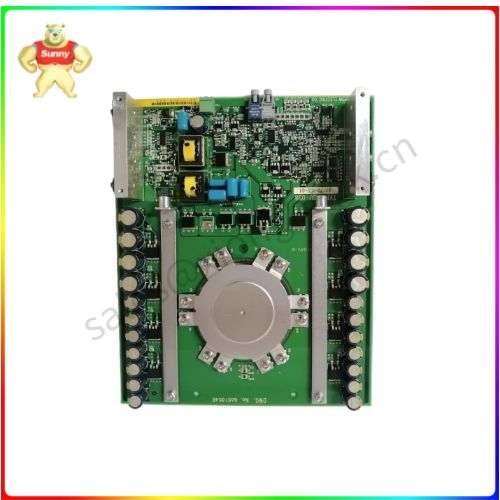

81003-438-51-R A-B Rectifier bridge interface board

Description

81003-438-51-R A-B Rectifier bridge interface board

description：

The role of thyristor one: controllable rectifier effect
One of the functions of thyristor is controlled rectifier, which is the most basic and important function of thyristor. The familiar diode rectifier circuit can only complete the function of rectification, and did not realize the controllable, and once the diode is changed into thyristor, it will constitute a controllable rectifier circuit.

In a basic single-phase half-wave controlled rectifier circuit, when the sinusoidal AC voltage is in positive half cycle, only when the control pole is triggered by the pulse, the thyristor will be triggered and switched on, and the load will have voltage output. Therefore, the average value of the output voltage on the load can be further adjusted by changing the time of the trigger pulse on the control pole, so as to achieve the role of controlled rectifier.

The role of thyristor two: used as a contactless switch
The second role of thyristor is used as a contactless switch, often used in automation equipment, instead of universal relay, has no noise, long life characteristics.

The role of thyristor three: switching and voltage regulation
The third role of thyristor is to play the role of switching and regulating voltage, often used in AC circuit, because of its trigger time is different, so the current through it is only a part of the AC cycle, through its voltage is only a part of the full voltage, thus play the role of regulating the output voltage.
