GE IC697HSC700 High-Speed Counter (HSC)

The IC697HSC700 is a High-Speed Counter (HSC) module that is formerly manufactured by GE Fanuc Automation, currently under Emerson Automation.

This module is mainly used to interface high-speed switching signals with a frequency of 200 kHz when operating at Type A, D, and Type E in Up/Down Quad mode and 800 kHz at Type E in Quad B mode.

This module is a single-slot module that mounts to an available I/O slot within the CPU baseplate, expansion, or remote baseplate.

It has Twelve (12) single-ended or differential logic inputs operating at 5VDC or 10-30 VDC voltages and Four (4) Positive Logic outputs providing 20 mA current output at 10-30 VDC voltage rating.

The IC697HSC700 is ideally used in Turbine flowmeter applications, Meter Proving, Velocity Measurement, Material Handling, Motion Control, and Position Control.

This module must be operated with a Series 90-70 IC697CPU having a firmware version of 5.0 or later.

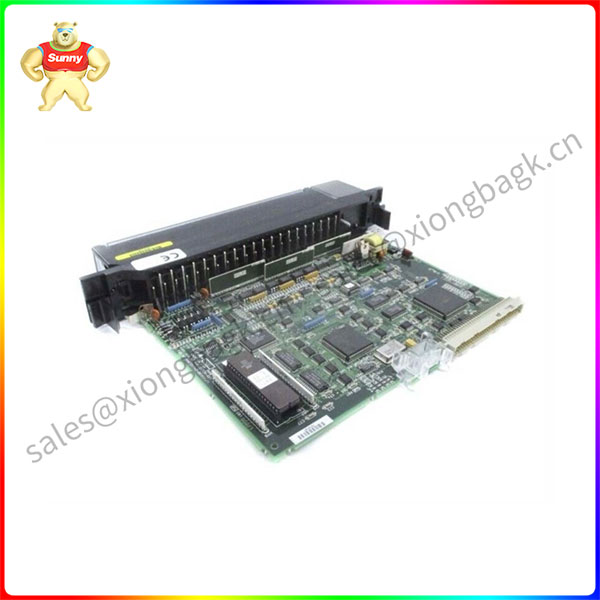

IC697HSC700

Applicable configuration and programming software are the Logicmaster 90-70 with software version of 5.0x

or later or the Windows-based programming software packages including VersaPro Professional Edition and the Proficy Machine Edition Logic Developer PLC Professional Edition.

This module is provided with LED status indicators such as MODULE OK and 01-04 output circuit status.

The input and output isolation of this module is rated 1500 Volts for 1 second and 30 VAC / VDC SteadyStatus.

This module has a backplane current draw of 1 Ampere plus 10 mA for every energized output. The output points are powered by the user supplied 5 VDC or 10-30 VDC supply voltage.
