GE IC697MDL671 listed in GE Series 90-70

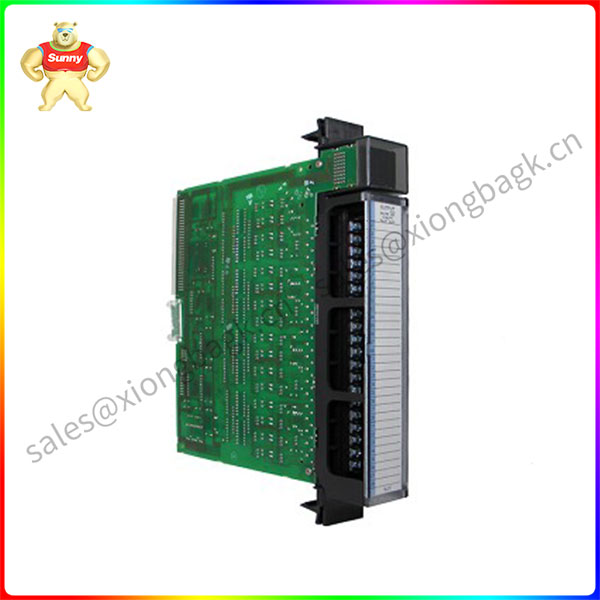

The GE Fanuc interrupt input module that is known as the IC697MDL671 input module is listed in GE Series 90-70 and

it is an accessory component that can contribute to more efficient system operation.

The IC697MDL671 interrupt input module is built for operation at the desired interrupt rate and it has a variety of features,

including operation with components such as switches with proximity sensors, space to install an input filter,

functionality with either positive or negative logic, pushbutton support, and independent operation.

The IC697MDL671 input module is protected with a dedicated key that helps to avoid the incorrect installation of the module.

IC697MDL671

The IC697MDL671 interrupt input module is intended to be used with systems operating on DC power and it offers 16 inputs that can be incorporated for various applications.

The inputs are categorized in 4 groups. The individual points are marked with letter-number codes from A1 to D4.

It should be noted that the last 2 inputs in the last input group are meant to be used for configuration purposes.

The IC697MDL671 interrupt input module operates on voltage of 24 Volts DC and its isolation voltage rating is 1500 Volts.

The voltage range of the module when the module is powered on is 13.5 to 30 Volts.

The opposite voltage range (off-state) is -3 to 5 Volts for positive logic and -5 to 30 Volts for negative logic.

In addition to that, the current rating for the module when it is turned on is 6 to 15 milliAmps and the current rating when the module is turned off is 0 to 2 milliAmps.
